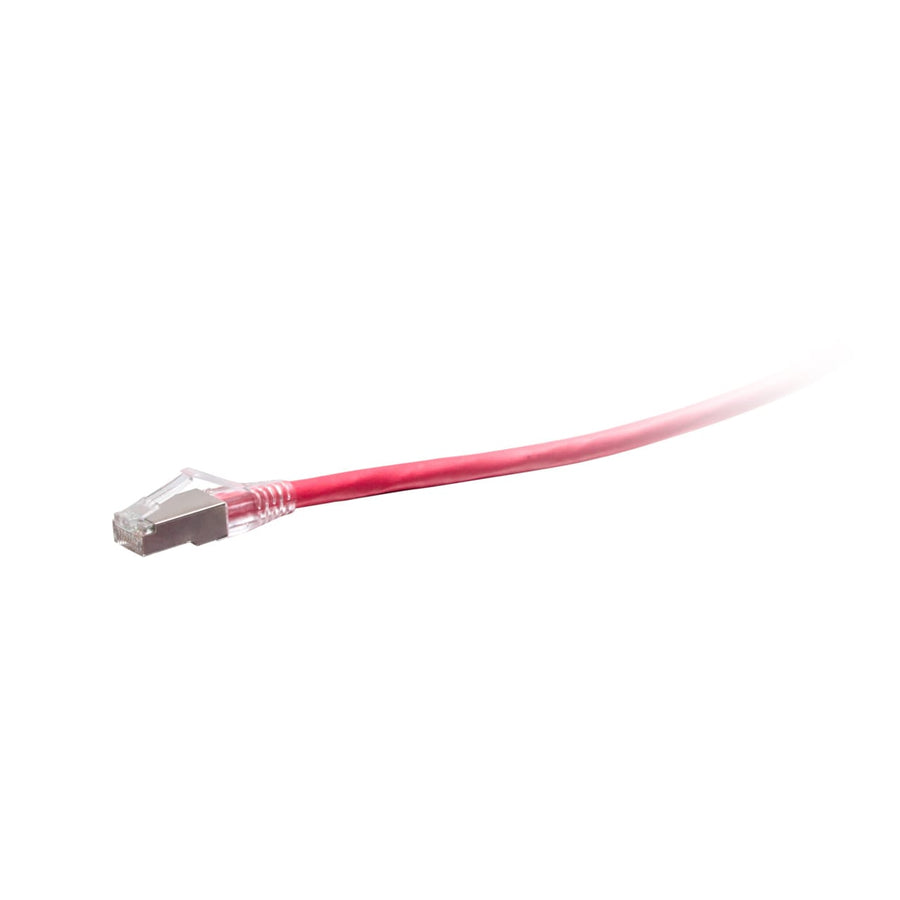

5ft (1.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
Red 5ft Cat6a snagless shielded STP patch cable, TAA-compliant and CMR rated for 10 Gigabit Ethernet applications
The C2G43880 is a 5 ft (1.5 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable finished in red. Designed for high-speed 10GBase-T environments, this passive cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. The cable features a CMR rated PVC jacket, making it suitable for riser applications. Each cable is constructed with high-quality, made in the USA copper stranded conductors and an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. The snagless RJ45 connector design helps prevent clips from snapping during high-frequency insertion cycles, and 50-micron gold-plated contacts maintain signal integrity. This cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The TAA-compliant status makes this SKU appropriate for United States government projects and facilities requiring specific sourcing compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438809 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43880 TAA compliant?
Yes, this cable is TAA-compliant, making it suitable for use in United States government projects and facilities.
What is the maximum speed and bandwidth support for this cable?
This Cat6a cable supports 10GBase-T (10 Gigabit Ethernet) and is designed to handle bandwidth-intensive applications while reducing impedance and structural return loss.
What type of shielding does this C2G cable use?
The C2G43880 uses Shielded STP (Shielded Twisted Pair) with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
What is the jacket rating for this red patch cable?
This cable features a CMR rated PVC jacket, making it rated for riser applications.
Can I use this for high-frequency insertion applications?
Yes, the snagless RJ45 connector design protects the clips from being easily snapped off, which is ideal for applications with high insertion cycles.
