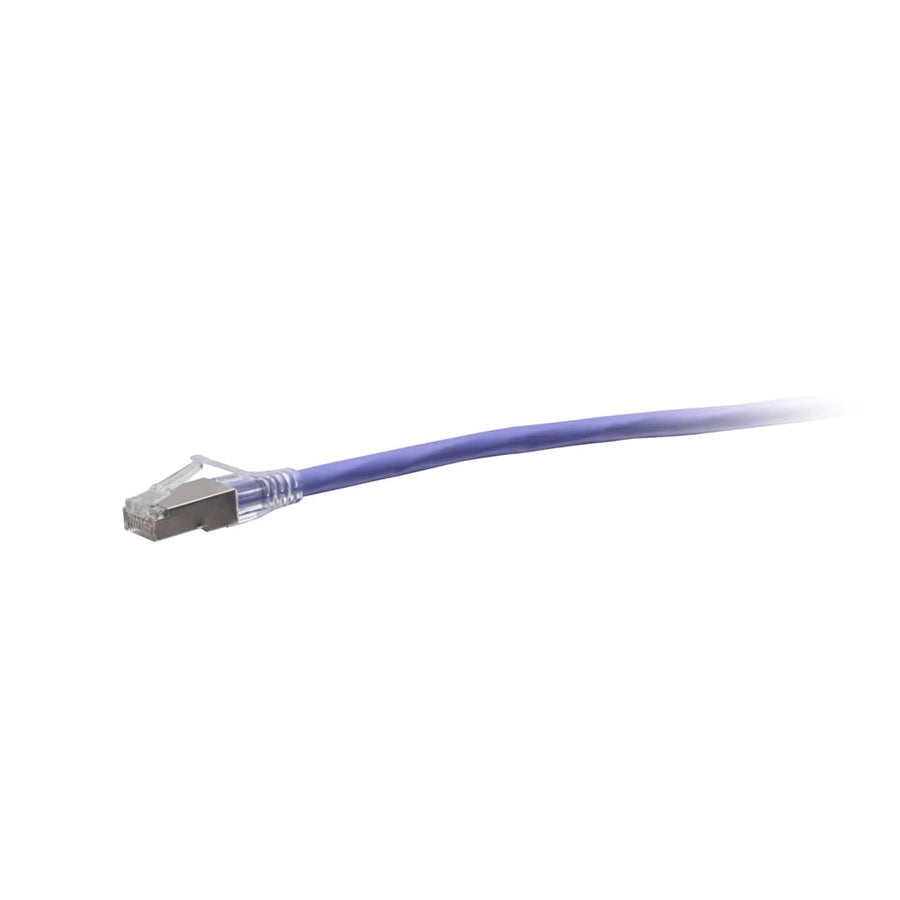

5ft (1.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
5ft TAA-compliant Cat6a shielded STP patch cable in purple, designed for 10GBase-T network environments requiring EMI/RFI protection
The C2G43943 is a 5 ft (1.5 m) TAA-compliant Cat6a snagless shielded (STP) network cable in purple, specifically engineered to support high-bandwidth 10GBase-T applications. This passive patch cable utilizes stranded copper conductors and is constructed with high-quality, made-in-the-USA raw cable to ensure reliable performance. The shielding, featuring an aluminum foil design, is intended to protect high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This cable meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The snagless RJ-45 connector design is built to protect the clips from being snapped off during high-frequency insertion cycles. Each connector features 50-micron gold-plated contacts to maintain signal integrity. This CMR-rated riser cable is suitable for various voice, data, and video distribution environments with an operating temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439431 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43943 TAA compliant?
Yes, this cable is TAA-compliant and meets the requirements for use in United States government projects and facilities.
Will this Cat6a cable support 10Gb Ethernet?
Yes, it is designed for 10GBase-T ports and equipment, including network adapters, switches, routers, and patch panels.
What is the maximum operating temperature for this cable?
The operating temperature range for this C2G43943 cable is -4°F to 167°F (-20°C to 75°C).
What is the difference between this and the unshielded version?
This SKU features Shielded STP construction with aluminum foil to protect against EMI, RFI, and alien crosstalk, unlike unshielded twisted pair versions.
Does this cable meet industry standards for Cat6a?
Yes, it meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
