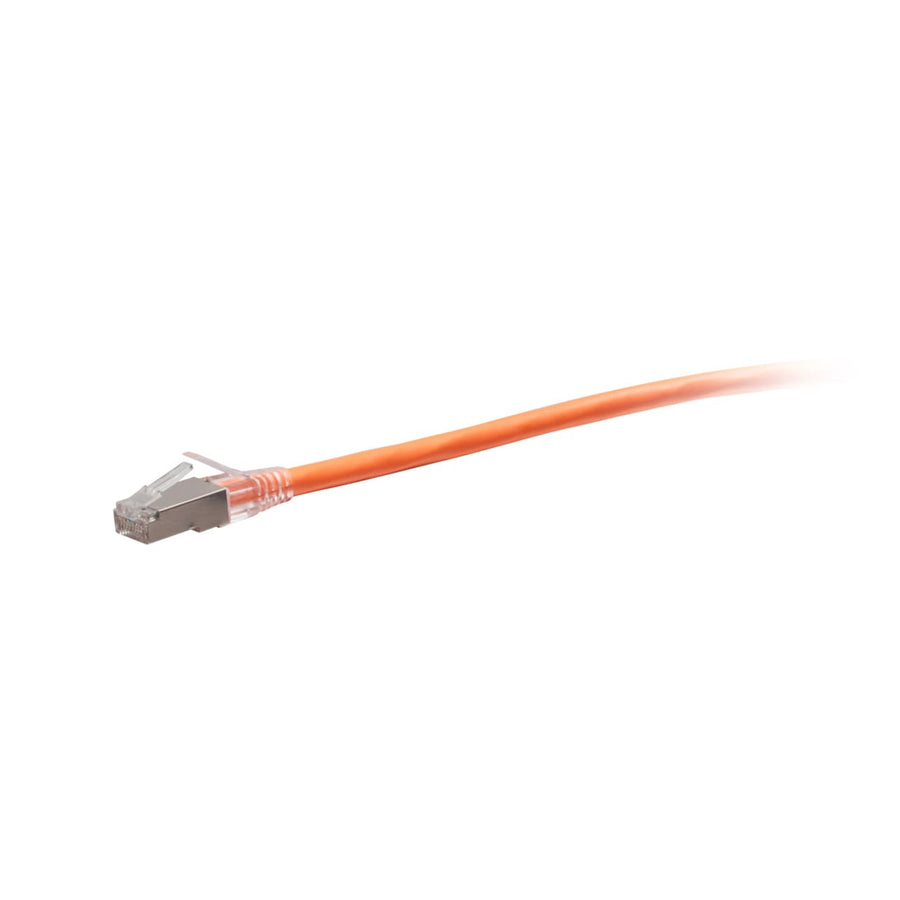

5ft (1.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
5ft shielded Cat6a STP patch cable in orange, TAA-compliant and snagless for 10GBase-T network environments
The C2G43922 is a 5ft (1.5 m) TAA-compliant Cat6a patch cable designed for high-speed 10GBase-T network environments. This orange, snagless shielded (STP) cable is engineered to protect high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It features an aluminum foil shield over stranded copper conductors to ensure consistent performance in bandwidth-intensive applications. This passive cable is constructed with a PVC jacket and is CMR rated for riser applications. Each connector features 50-micron gold-plated contacts and a snagless design to protect the RJ45 clips from damage during frequent insertion cycles. The cable is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. This F-Series cable is suitable for use in United States government projects and facilities due to its TAA compliance. It is compatible with a variety of network equipment, including switches, routers, hubs, and patch panels, using a T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439226 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43922 TAA compliant?
Yes, this F-Series Cat6a cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed to support 10GBase-T high-speed 10 Gigabit Ethernet applications, meeting ANSI/TIA-568.2-D standards.
What shielding does this orange patch cable use?
This is a Shielded STP cable utilizing aluminum foil to protect against EMI, RFI, and alien crosstalk.
What is the jacket rating for this cable?
This cable features a PVC jacket with a CMR rating, making it suitable for riser applications.
How does the snagless design benefit the installer?
The snagless RJ45 connector design protects the clips from being snapped off, which is beneficial for applications requiring high insertion cycles.
