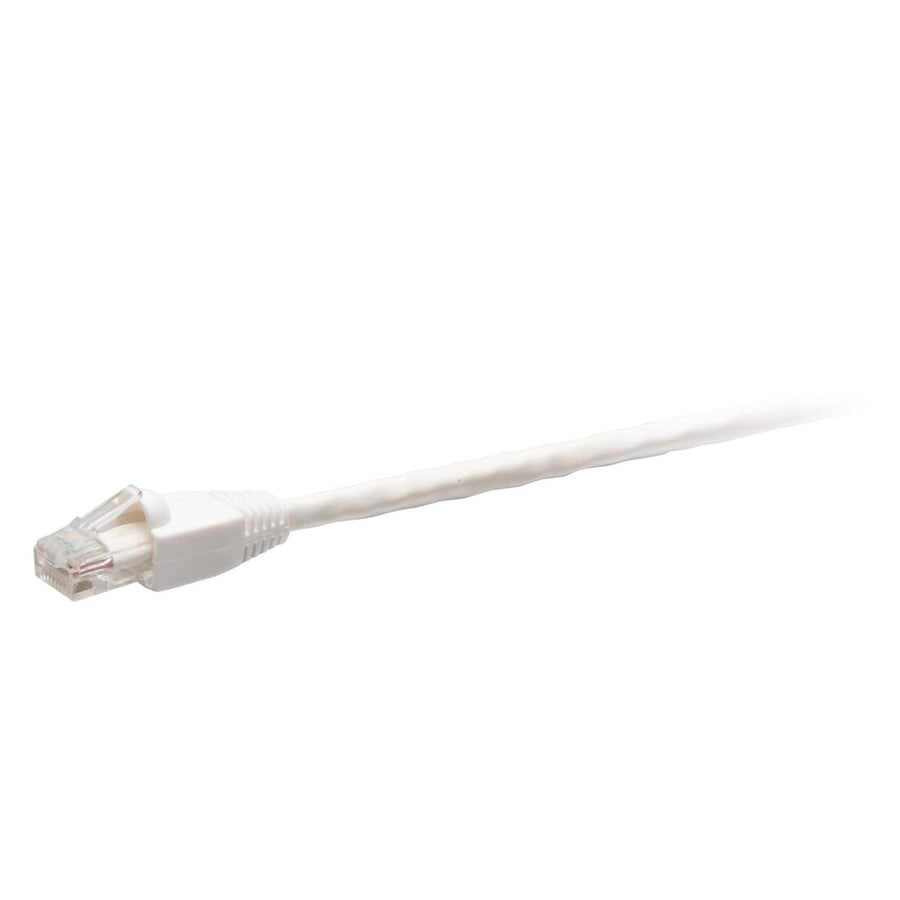

5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
5ft TAA-compliant Cat6 UTP network cable with snagless RJ45 connectors and white PVC jacket
The C2G43574 is a 5ft (1.5m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable designed for high-performance connectivity in government-regulated facilities and professional environments. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications such as 1000BASE-T (1 Gigabit Ethernet). Constructed with high-quality, made in the USA stranded copper, it provides a 600 MHz maximum frequency for improved signal reliability compared to standard Cat6 cabling. The white PVC jacket is CMR (Riser) rated for safe installation in vertical shafts. Each RJ45 male connector features a molded, snagless boot to protect the clips from accidental breakage during frequent insertion cycles and to provide additional strain relief. The connectors utilize 50-micron gold-plated contacts to maintain signal integrity. This SKU is part of a series available in various colors and lengths up to 100ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435747 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43574 TAA compliant?
Yes, this Cat6 cable is TAA-compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
The cable is designed with enhanced 600 MHz maximum frequency performance for reliable high-speed networking.
Can I use this cable in a riser application?
Yes, the jacket is CMR (Riser) rated and made of PVC, making it suitable for vertical installations.
Does this cable feature gold-plated contacts?
Yes, the RJ45 connectors are equipped with 50-micron gold-plated contacts to improve signal integrity.
What is the wiring scheme used for the C2G43574?
This cable utilizes the T568B wiring scheme for standard network connectivity.
