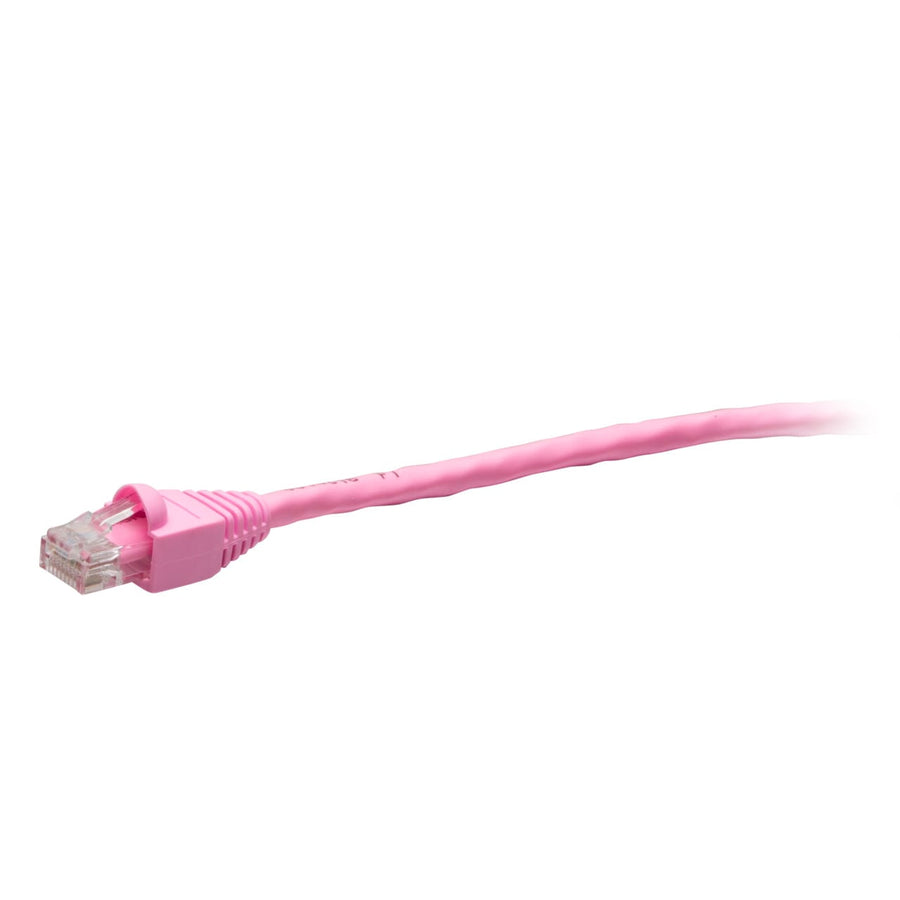

5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
5ft pink Cat6 snagless UTP network cable, TAA-compliant and CMR rated for reliable 1000BASE-T Ethernet performance
The C2G43595 is a 5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in pink. This cable is engineered for high-performance networking applications, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is designed to support 1000BASE-T (1 Gigabit Ethernet) and features a maximum frequency of 600 MHz due to its high-quality, made in the USA copper conductors. The cable uses a stranded copper conductor with a 24 gauge wire. For improved signal integrity, the RJ-45 male connectors feature 50-micron gold-plated contacts. The snagless boot design protects the clips from breakage, making it suitable for environments with high insertion cycles. This CMR-rated, riser-rated cable is ideal for use in network adapters, hubs, switches, and routers. Because it is TAA compliant, this pink cable is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435952 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43595 TAA compliant for government use?
Yes, this is a TAA-Compliant F-Series cable, making it approved for United States government projects and facilities.
What is the maximum data speed and frequency for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What is the difference between the snagless boot and standard RJ45 connectors?
The molded, snagless boot provides extra strain relief and protects the RJ45 clips from being snapped off during installation or high-frequency use.
Can this cable be used in riser applications?
Yes, this is a CMR rated, riser-rated cable designed for use in various network environments.
What other colors or lengths are available in this series?
This series offers various colors including Black, Blue, Gray, Green, Orange, Purple, and Red, with lengths available up to 100ft.
