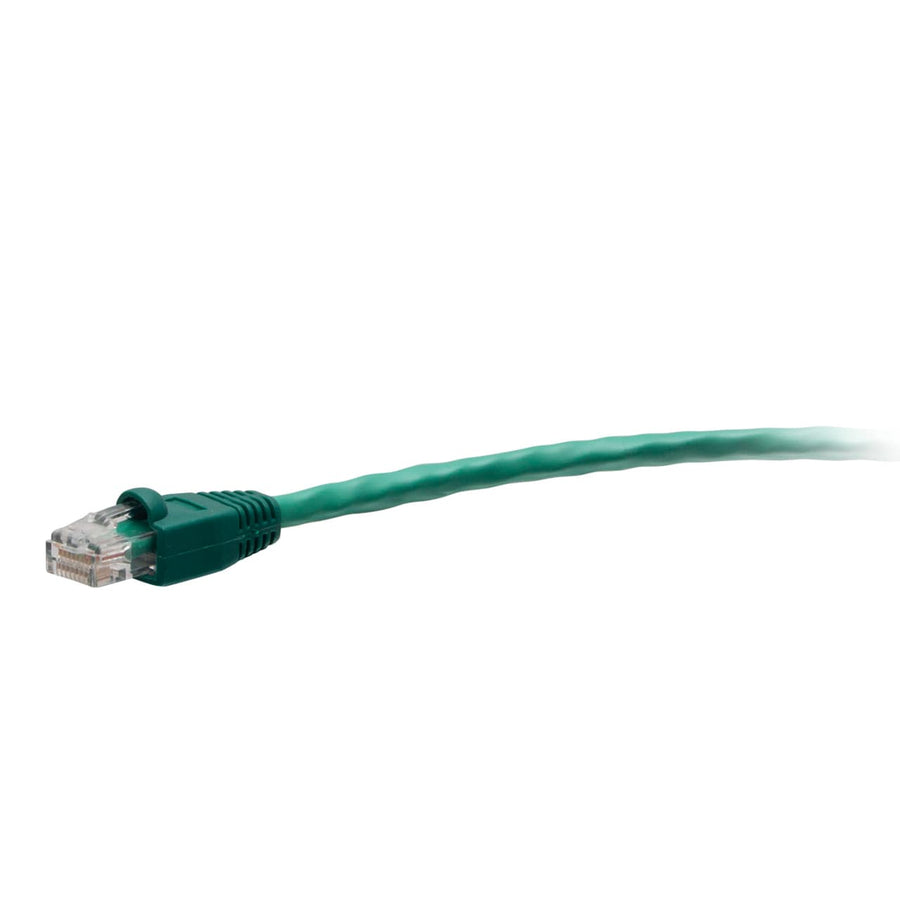

5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
5ft TAA-compliant Green Cat6 snagless UTP network cable with 50-micron gold-plated contacts and CMR riser rating
The C2G43490 is a 5 ft (1.5 m) TAA-compliant Cat6 snagless unshielded UTP network cable in green, designed specifically to meet the requirements of United States government projects and facilities. This passive cable features a snagless RJ45 connector design, which utilizes a molded boot to protect the clips from snapping off during installation or frequent insertion cycles. It is constructed with high-quality, made in the USA stranded copper conductors that support a maximum frequency of 600 MHz, ensuring reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. This CMR rated riser cable is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The connectors feature 50-micron gold-plated contacts to maintain signal integrity in hubs, switches, routers, and servers. Operating within a temperature range of -4° to 167°F (-20° to 75°C), this cable is a versatile solution for professional network infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434900 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43490 TAA compliant?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
This cable is constructed with copper cabling that provides an enhanced 600 MHz maximum frequency to support 1000BASE-T applications.
What is the jacket rating for this network cable?
The C2G43490 features a CMR rated riser jacket made of PVC material.
Does the snagless design offer any specific benefit?
The molded, snagless boot protects the RJ45 clips from being snapped off, providing extra strain relief during installation and high insertion cycles.
What other equipment can I use this cable with?
This cable is designed for use with network adapters, hubs, switches, routers, and servers.
