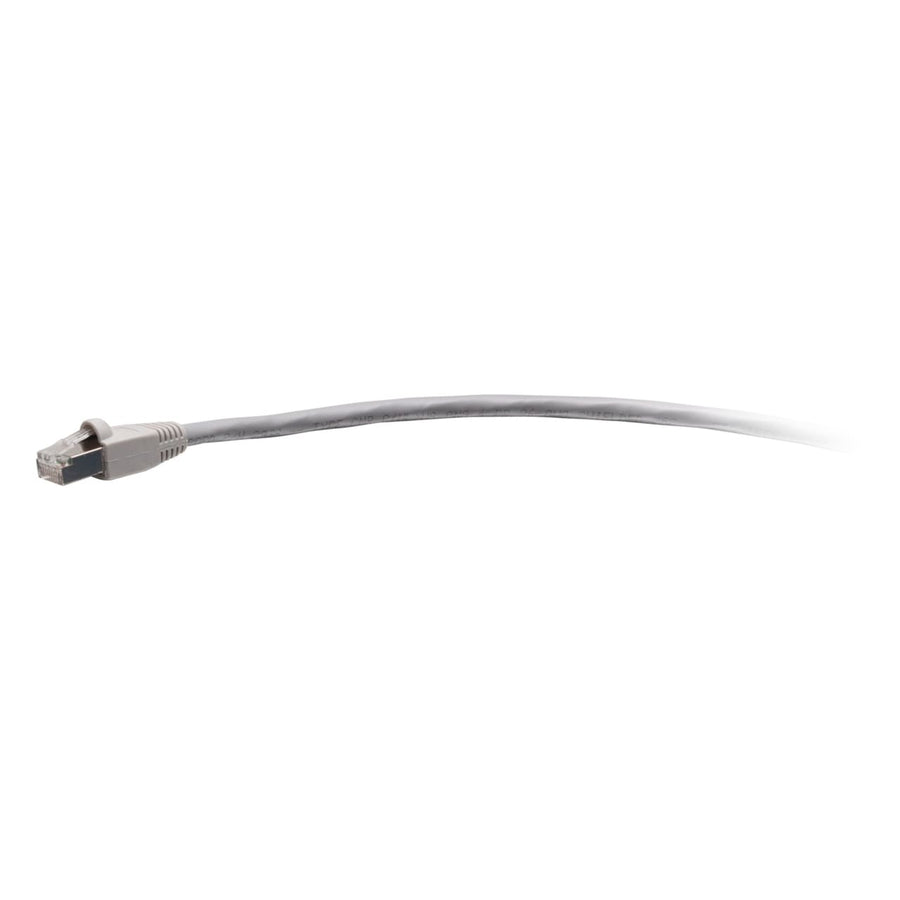

5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
5ft TAA-compliant Cat6 STP snagless shielded network cable in gray with 26 AWG copper conductors
The C2G43712 is a 5 ft (1.5 m) TAA-compliant Cat6 snagless shielded (STP) network cable designed for high-speed connectivity in environments requiring strict compliance. This passive cable is manufactured using high-quality, made-in-the-USA copper cabling to ensure reliable performance for network adapters, hubs, switches, routers, and servers. It is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. The cable features a snagless RJ-45 connector design, which protects the clips from snapping during high-frequency insertion cycles. Each connector is equipped with 50-micron gold-plated contacts to maintain signal integrity. The STP shielding and aluminum foil construction help counter EMI, RFI, and alien crosstalk, while the CMR-rated PVC jacket is suitable for riser applications. Operating within a temperature range of -4° - 167°F (-20° - 75°C), this gray cable is an ideal choice for US government projects and facilities requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437123 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43712 TAA compliant?
Yes, this is a TAA-compliant cable suitable for United States government projects and facilities.
What is the maximum data rate for this Cat6 cable?
This cable meets ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of shielding does the C2G43712 use?
It features Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
Can this cable be used in riser applications?
Yes, the cable features a CMR-rated PVC jacket designed for riser applications.
What is the wire gauge and conductor material?
This cable uses 26 AWG stranded copper conductors.
