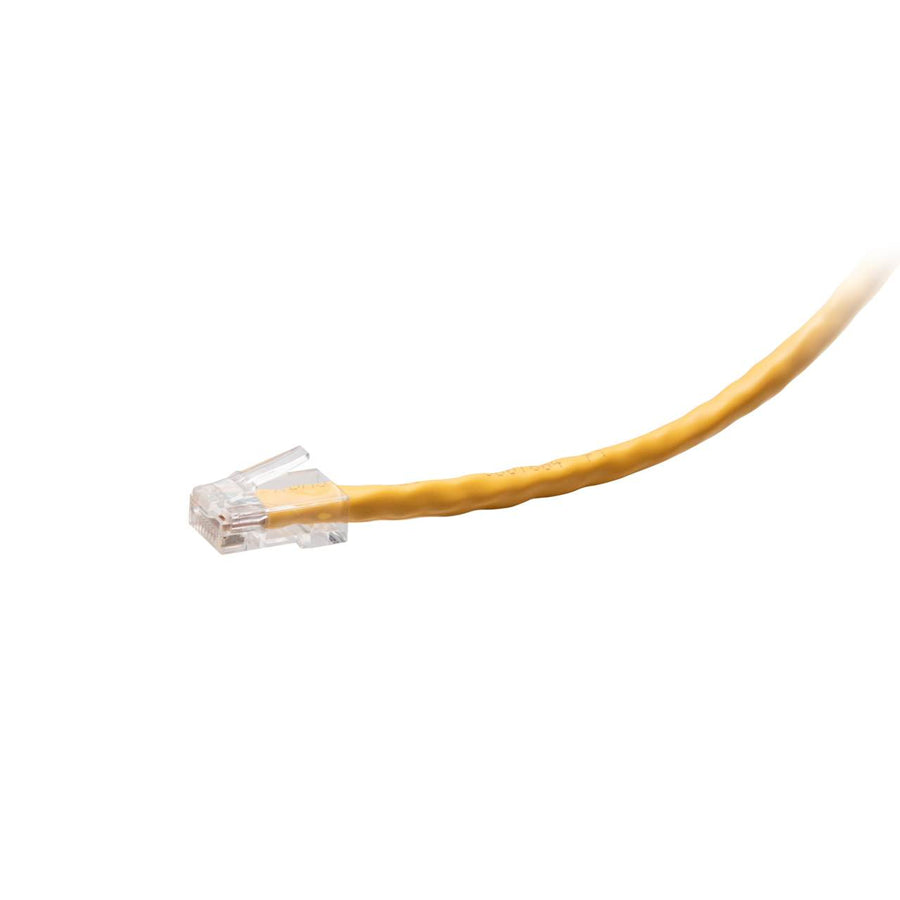

5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Yellow
5ft (1.5m) TAA-compliant Cat6 UTP network cable, yellow, non-booted with RJ-45 male connectors
The C2G43652 is a 5 ft (1.5 m) TAA-compliant F-Series Cat6 non-booted unshielded (UTP) network cable designed for high-reliability connectivity in government-regulated environments. This yellow cable is constructed with high-quality, made in the USA copper cabling, featuring 24 AWG stranded conductors to ensure consistent performance for 1000BASE-T (1 Gigabit Ethernet) applications. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, providing an enhanced 600 MHz maximum frequency for superior signal integrity compared to standard Cat6 alternatives. Each cable features RJ-45 male connectors equipped with 50-micron gold-plated contacts to maintain stable connections for network adapters, hubs, switches, routers, and servers. The jacket is PVC and CMR rated for riser applications, making it suitable for various installation environments. This passive cable is available in multiple colors for system organization and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436522 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43652 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable, which makes it approved for use in United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency, which is higher than standard Cat6 cables for increased performance.
What RJ-45 connector type is used on this cable?
The C2G43652 features standard RJ-45 male connectors with 50-micron gold-plated contacts to ensure signal integrity.
What is the jacket rating for this yellow network cable?
The cable uses a PVC jacket that is CMR rated for riser applications.
What can I use this cable for in a server environment?
It is designed for connections to network adapters, hubs, switches, routers, and servers supporting 1000BASE-T applications.
