5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple

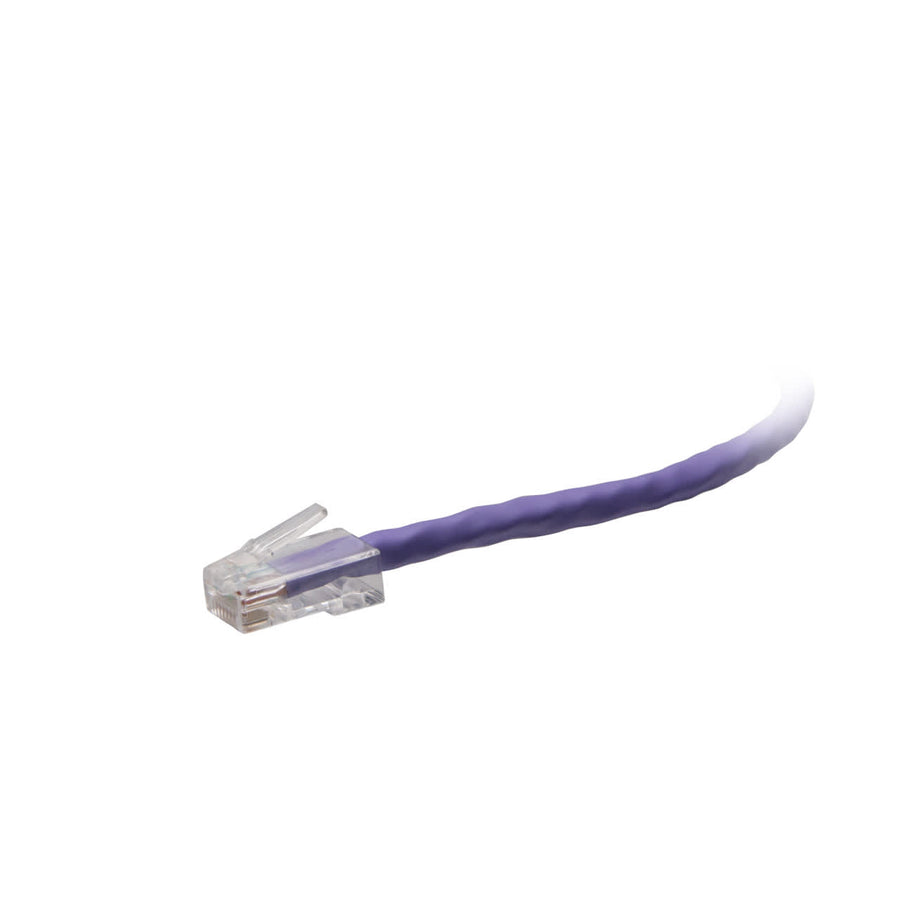

Purple TAA-compliant Cat6 UTP network cable, 5 ft (1.5 m) length, featuring non-booted RJ-45 male connectors
The C2G43676 is a 5 ft (1.5 m) TAA-compliant F-Series Cat6 network cable designed to meet the strict requirements of United States government projects and facilities. This unshielded (UTP) cable features a purple jacket and is constructed with high-quality, made in the USA copper stranded conductors. It is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, providing support for 1000BASE-T (1 Gigabit Ethernet) applications. The cable features 50-micron gold-plated contacts on the RJ-45 male connectors to improve signal integrity for connections to network adapters, hubs, switches, routers, and servers. With a maximum frequency of 600 MHz, this cable provides enhanced performance over standard Cat6 alternatives. The CMR rated riser jacket is made of PVC and is suitable for operating in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436768 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43676 TAA compliant for government contracts?
Yes, this cable is TAA-compliant and meets the requirements for use in United States government projects and facilities.
What is the maximum frequency and performance of this Cat6 cable?
This cable offers an enhanced 600 MHz maximum frequency, meeting or exceeding ANSI/TIA-568.2-D standards for 1000BASE-T applications.
What type of shielding and jacket rating does this cable have?
The C2G43676 is an unshielded UTP cable with a CMR rated PVC riser jacket.
What equipment is this network cable compatible with?
It is designed for use with network adapters, hubs, switches, routers, and servers using RJ-45 male connectors.
What is the operating temperature range for this cable?
This cable is rated for operating temperatures between -4°F and 167°F (-20°C to 75°C).
