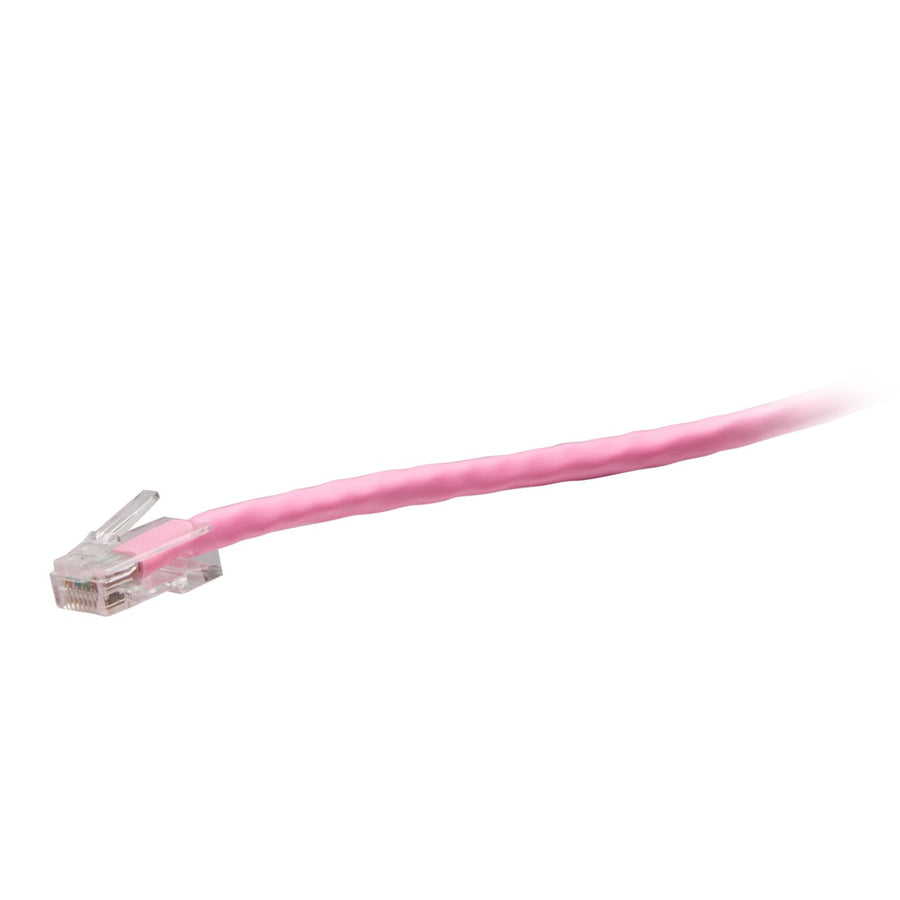

5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Pink
5ft TAA-compliant Cat6 UTP network cable in pink with non-booted RJ-45 connectors
The C2G43700 is a 5ft (1.5m) TAA-compliant Cat6 network cable designed to meet the stringent requirements of United States government projects and facilities. This non-booted, unshielded twisted pair (UTP) cable is constructed with high-quality, made in the USA raw copper, providing a 600 MHz maximum frequency for reliable performance in high-demand environments. It is engineered for use with network adapters, hubs, switches, routers, and servers, supporting 1000BASE-T (1 Gigabit Ethernet) applications. The cable features 50-micron gold-plated contacts to enhance signal integrity and follows the T568B wiring scheme. With a 0.22 in (5.6 mm) diameter and a PVC jacket with a CMR riser rating, this pink cable is an ideal solution for color-coded network installations. The cable is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437000 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43700 TAA compliant?
Yes, this cable is TAA compliant, making it suitable for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What kind of jacket rating does this cable have?
This pink Cat6 cable features a PVC jacket with a CMR (Riser) rating for versatile installation applications.
What is the termination standard for the RJ-45 connectors?
The C2G43700 uses the T568B wiring scheme and features 50-micron gold-plated contacts for signal integrity.
What other colors and lengths are available in this series?
This series includes various colors such as Black, Blue, Gray, Green, Orange, Purple, and Red, with lengths available up to 25ft.
