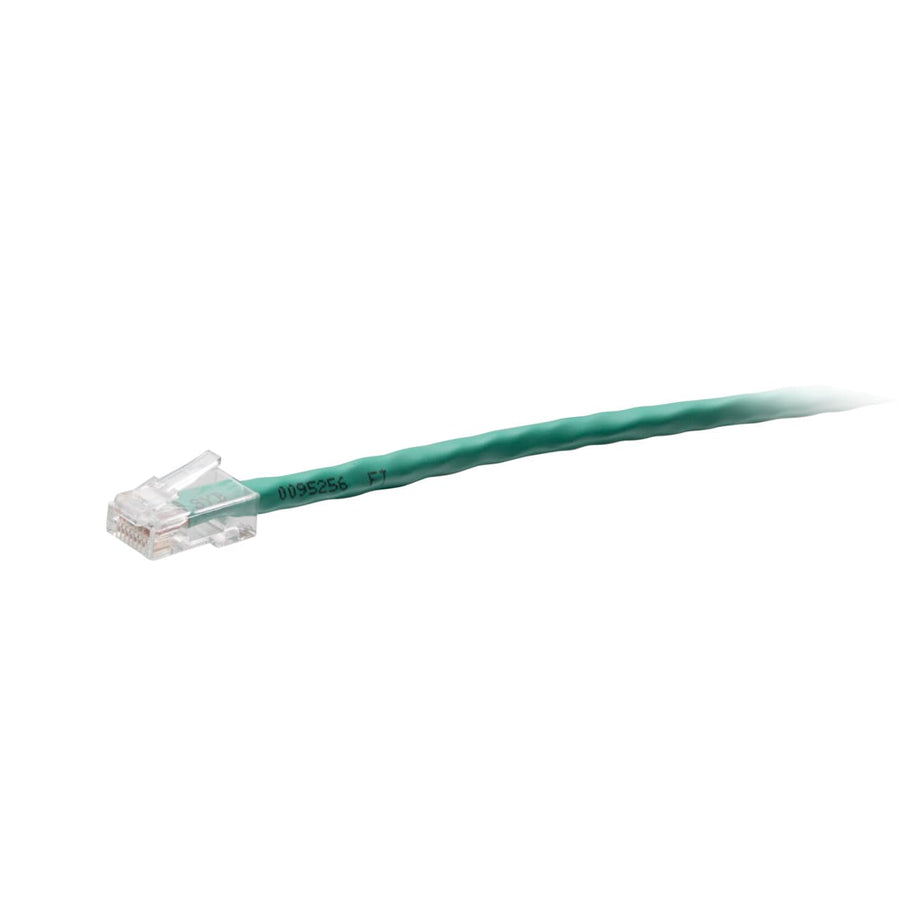

5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Green
5ft TAA-compliant Cat6 UTP network cable, green, with 50-micron gold-plated contacts and CMR riser-rated jacket
The C2G43640 is a 5ft (1.5m) TAA-compliant Cat6 non-booted unshielded (UTP) network cable specifically designed for use in United States government projects and facilities. This green patch cable features stranded copper conductors and is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It provides support for 1000BASE-T (1 Gigabit Ethernet) applications, connecting devices such as network adapters, hubs, switches, routers, and servers. This cable is constructed with high-quality, made in the USA raw cable, offering an enhanced 600 MHz maximum frequency for more consistent and reliable performance than standard Cat6 options. The cable jacket is PVC and CMR rated for riser applications, ensuring suitability for vertical pathways in residential or commercial buildings. Each end is terminated with a standard RJ-45 male connector featuring 50-micron gold-plated contacts to maintain high signal integrity. This passive cable is suitable for operating in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436409 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43640 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and is engineered with an enhanced 600 MHz maximum frequency.
Can I use this cable in a riser application?
Yes, the jacket is PVC and CMR rated, making it suitable for riser-rated applications.
What is the wiring scheme for the C2G43640?
This cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
What other products are compatible with this cable?
It can be used in conjunction with CG37199 24-port patch panels, CG37200 48-port patch panels, and various EN series enclosures.
