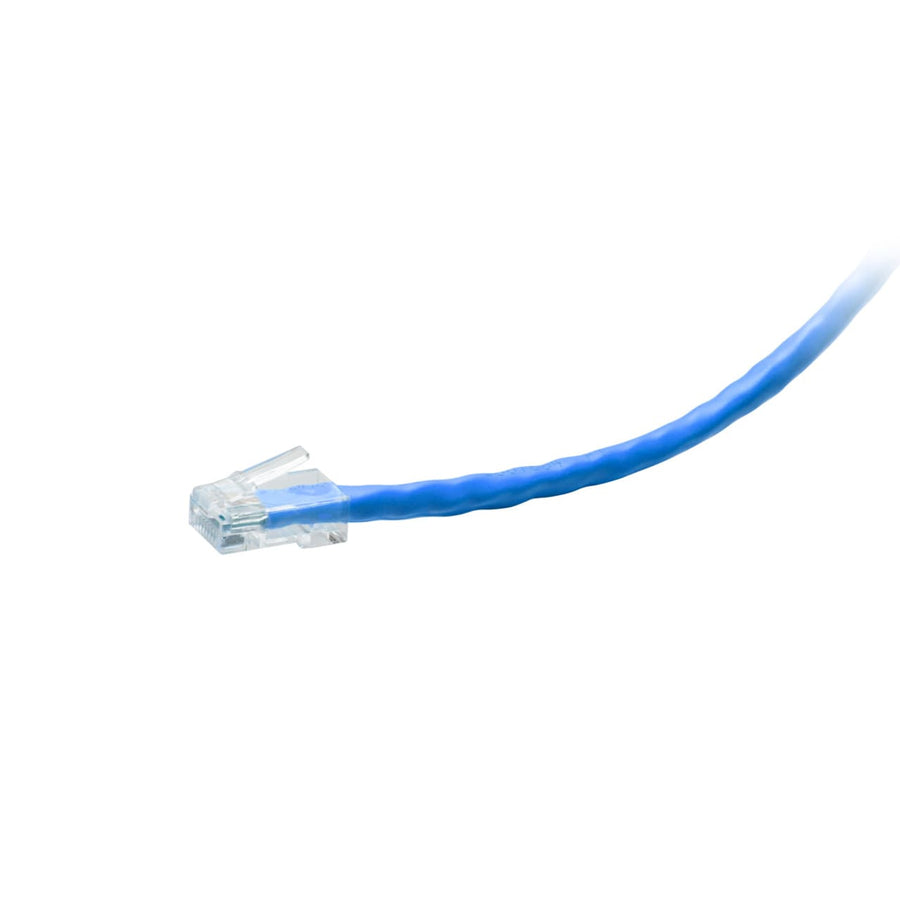

5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Blue
5ft TAA-compliant Cat6 UTP network cable, blue, with 24 AWG stranded copper conductors and RJ-45 connectors
The C2G43616 is a 5ft (1.5m) TAA-compliant Cat6 non-booted unshielded (UTP) network cable designed to meet the stringent requirements of United States government projects and facilities. This passive network cable is ideal for connecting network adapters, hubs, switches, routers, and servers. Built with high-quality, made-in-the-USA copper cabling, it provides an enhanced 600 MHz maximum frequency for increased performance over standard Cat6 alternatives. The cable features 50-micron gold-plated contacts on the RJ-45 male connectors to improve signal integrity and uses 24 AWG stranded copper conductors for consistent, reliable performance. This blue cable is rated for riser applications (CMR) and is constructed with a PVC jacket. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications across an operating temperature range of -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436164 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43616 TAA compliant for government work?
Yes, the C2G43616 is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
Will this cable work in a riser installation?
Yes, this cable features a CMR rated riser jacket application, suitable for vertical pathways in plenum-free environments.
What type of construction does this Cat6 cable have?
The C2G43616 uses unshielded (UTP) stranded copper conductors with 50-micron gold-plated RJ-45 male connectors.
Does this cable come with a warranty?
Yes, this C2G network cable is backed by a lifetime warranty from C2G.
