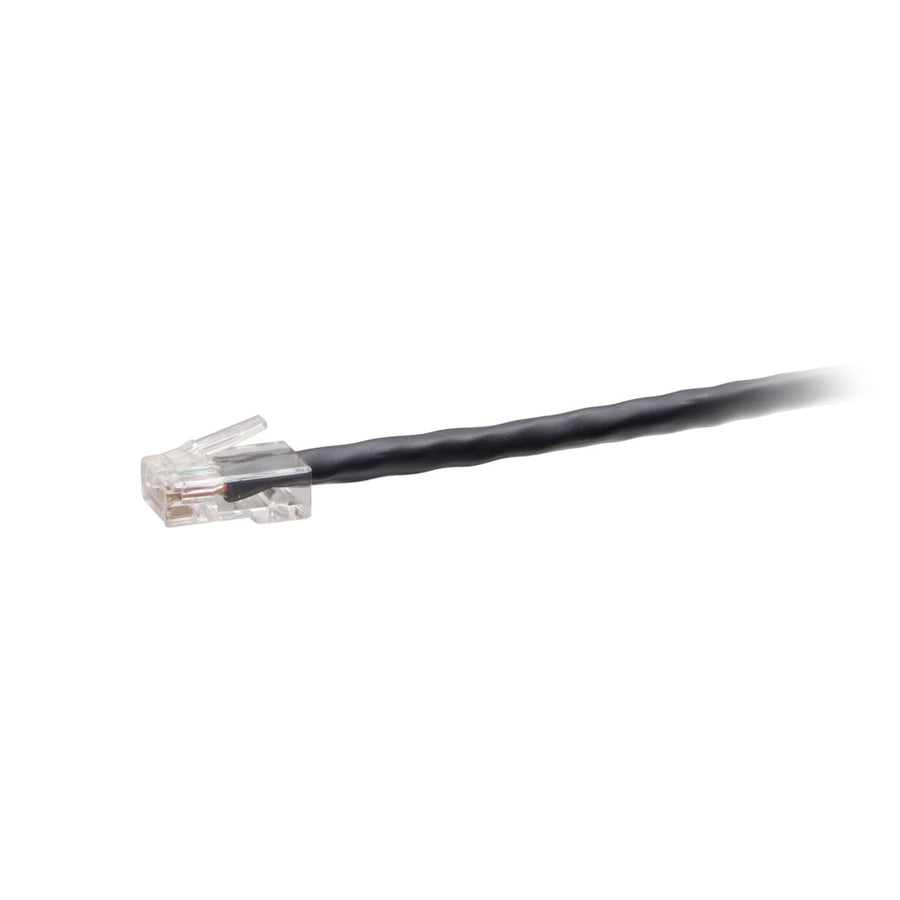

5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
5ft TAA-compliant Cat6 UTP network cable, non-booted, featuring black PVC jacket and gold-plated contacts
The C2G43628 is a 5ft (1.5m) TAA-compliant Cat6 non-booted unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This cable is approved for use in United States government projects and facilities requiring TAA compliance. It features a black PVC jacket with a CMR riser rating, making it suitable for vertical pathways in residential or commercial installations. The cable uses stranded copper conductors with a 24 AWG wire gauge and a T568B wiring scheme to support 1000BASE-T (1 Gigabit Ethernet) applications. Each RJ-45 male connector is outfitted with 50-micron gold-plated contacts to maintain signal integrity. This passive cable is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, providing a maximum frequency of 600 MHz. This 5ft length is ideal for short-patching between network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436287 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43628 TAA compliant?
Yes, this is a TAA-compliant cable, making it suitable for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This Cat6 cable supports up to 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What is the wiring scheme for this network cable?
The C2G43628 uses a standard T568B wiring scheme and is an unshielded UTP (UTP) cable.
Can I use this cable in a vertical riser installation?
Yes, the cable features a PVC jacket with a CMR (Riser) rating for vertical application usage.
What other C2G cables are available in different lengths?
This series offers various lengths up to 25ft, and this specific SKU is the 5ft (1.5m) version.
