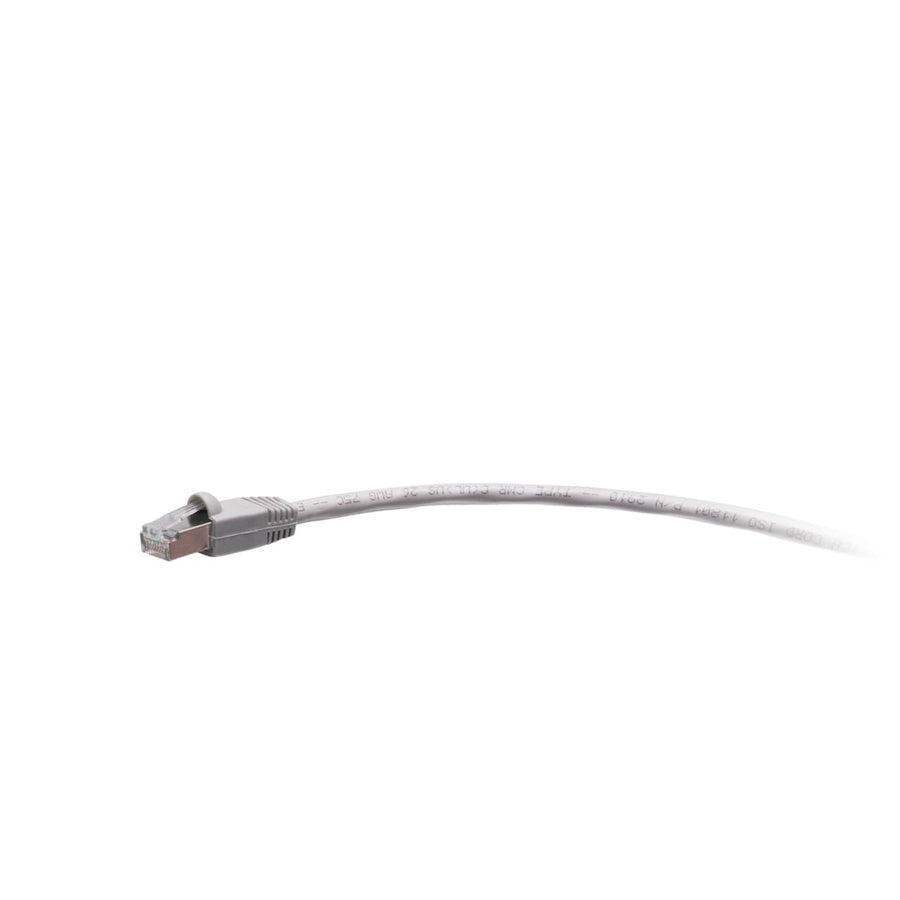

5ft (1.5m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Gray
5ft TAA-compliant Cat5e STP shielded patch cable in gray with snagless RJ45 connectors
The C2G43426 is a 5ft (1.5m) TAA-compliant Cat5e snagless shielded (STP) network cable designed for use in United States government projects and facilities. This gray patch cable utilizes high-quality, made-in-the-USA copper stranded conductors to ensure consistent and reliable performance for network adapters, hubs, switches, routers, and servers. It is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications including 1000BASE-T (1 Gigabit Ethernet). To protect signal integrity in noisy environments, the cable features 100% aluminum foil shielding (STP) to prevent RFI and EMI interference. Each end is equipped with an RJ-45 male connector featuring 50-micron gold-plated contacts and a snagless molded boot for enhanced strain relief. This CMR rated, riser-rated cable is suitable for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434269 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is this C2G43426 cable suitable for government contracts?
Yes, this is a TAA-compliant cable specifically designed to meet the requirements for United States government projects and facilities.
What is the maximum data speed supported by this Cat5e cable?
This cable meets ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
How does the shielding help in noisy environments?
The STP construction uses 100% aluminum foil coverage to help prevent RFI and EMI from affecting data transmission.
Can I use this cable in a riser application?
Yes, this cable features a CMR rated Riser jacket, making it suitable for riser applications.
What is the temperature range for this network cable?
The cable is rated for operating temperatures between -4°F and 167°F (-20°C to 75°C).
