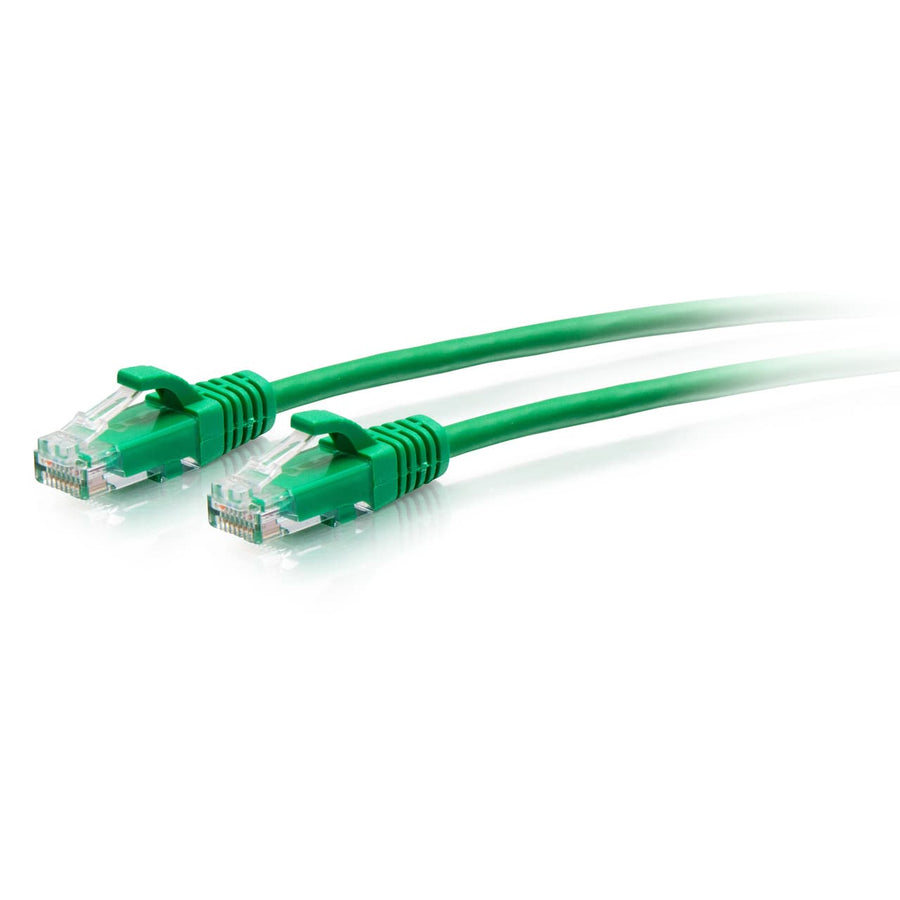

5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Green
Green 5ft Cat6a slim UTP patch cable with 28AWG conductors for high-density network environments
The C2G30155 is a 5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in Green, engineered specifically for high-density cabling environments like datacenters or large conference rooms. This cable utilizes 28AWG stranded copper conductors, which significantly reduce the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (0.01 in). This slim profile increases airflow in crowded enclosures and provides the flexibility needed for tight space installations where standard Cat6 cables might be too bulky. This Cat6a cable supports data transfer rates up to 10 GBPS and is ideal for applications requiring high bandwidth, such as HDBaseT deployments, Power over Ethernet (PoE), or VoIP setups. The RJ-45 male connectors feature gold-plated contacts and are protected by molded, snagless PVC boots to provide strain relief and prevent damage during installation. The cable is unshielded (UTP) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This green patch cable is backed by a lifetime warranty and is compliant with RoHS, REACH, CE, and TAA requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301554 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cable Management Strap - 12 Piece
TW12$25.20
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
Will this C2G30155 cable work for PoE or VoIP applications?
Yes, the Cat6a technology and 28AWG construction make it suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
What is the maximum data transfer rate for the C2G30155?
This Cat6a patch cable supports data transfer rates up to 10 GBPS.
Does the C2G30155 cable include a snagless boot?
Yes, it features a molded, snagless PVC boot that provides extra strain relief and prevents snags during installation.
Is this cable suitable for high-density datacenter environments?
Yes, the 0.19 in (4.8 mm) diameter and 28AWG construction are designed to increase airflow and accommodate tight spaces in high-density racks.
What is the warranty on this C2G30155 cable?
This green Cat6a slim patch cable is covered by a lifetime warranty.
