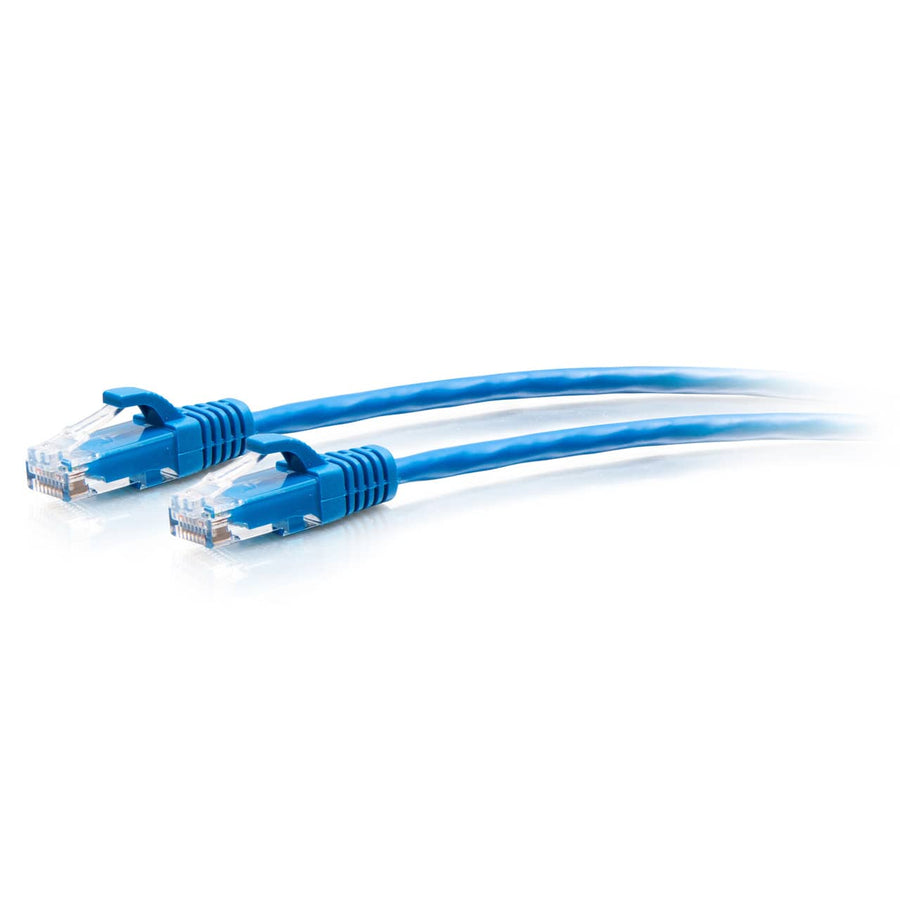

5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Blue
5ft Cat6a slim UTP patch cable with 28AWG construction and snagless boots in blue
The C2G30129 is a 5ft (1.5 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in blue. Engineered for high-density environments like datacenters and large conference rooms, this cable uses 28AWG stranded copper conductors to significantly reduce the cable diameter to 0.19 in (4.8 mm). This slim profile increases airflow in crowded racks and provides greater flexibility for tight space installations. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each end features an RJ-45 Male connector with gold-plated contacts and a molded, snagless PVC hood to prevent accidental snags and provide strain relief during installation. This UTP slim cable is also suitable for Power over Ethernet (PoE) and VoIP applications. The construction includes an AL foil wrap shield and is compliant with RoHS, REACH, and TAA 889 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301295 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will this C2G30129 cable work for 10Gbps networking?
Yes, this Cat6a patch cable supports data transfer rates up to 10 GBPS, making it suitable for high-speed network environments.
What is the cable diameter of the C2G30129?
This slim Cat6a cable has a diameter of 0.19 in (4.8 mm) ± 0.15 in (0.4 mm), which is significantly thinner than standard Cat6 cables.
Is this cable suitable for PoE applications?
Yes, the 28AWG construction of this Cat6a cable makes it appropriate for Power over Ethernet (PoE) and VoIP installations.
What is the difference between this and standard Cat6 cables?
The C2G30129 offers increased bandwidth compared to Cat6 and a smaller surface area for improved airflow in high-density racks.
What documents are available for technical submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet or the C2G Ethernet Patch Cable Matrix in PDF format for technical details.
