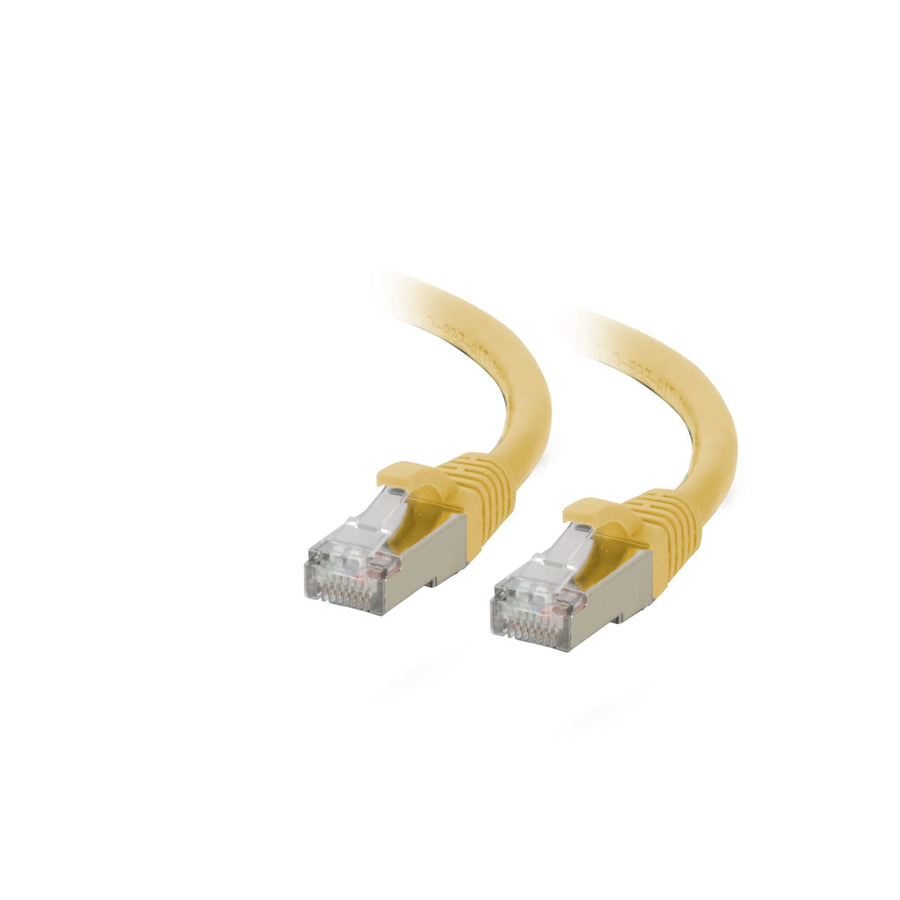

5ft (1.5m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Yellow
Yellow 5ft Cat6a STP snagless patch cable supporting 10Gbps data transfer and shielded protection against EMI
The C2G07374 is a 5ft (1.5m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable designed for high-speed 10Gbps network environments. This yellow cable is engineered to protect high-speed 10 Gigabit connections from electromagnetic interference (EMI) and noise through its shielded twisted pair (STP) construction. It is ideal for use with 10GBase-T equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, which helps reduce both impedance and structural return loss (SRL). The construction features stranded copper conductors and 26 AWG wire gauge to maintain performance. To assist in high-density environments, the RJ-45 male connectors feature a snagless, booted design that protects the connector's lock during installation. The cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C) and includes an individual length label for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073741 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Yes, the C2G07374 supports data transfer rates up to 10 GBPS, making it suitable for 10GBase-T equipment like switches and routers.
Yes, the C2G07374 supports data transfer rates up to 10 GBPS, making it suitable for 10GBase-T equipment like switches and routers.
What is the shielding type for this patch cable?
This is a Shielded STP (Shielded Twisted Pair) cable, which is designed to protect high-speed network connections from noise and electromagnetic interference.
What tools are required for installation?
The C2G07374 is a pre-terminated patch cable; however, for testing, a LANtest Pro Remote Network Cable Tester or a LANsmart TDR Cable Tester is recommended.
Is this cable suitable for high-density environments?
Yes, the snagless design and booted RJ-45 connectors protect the connector lock, which is specifically helpful in high-density rack or switch environments.
What is the temperature range for this cable?
This cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
