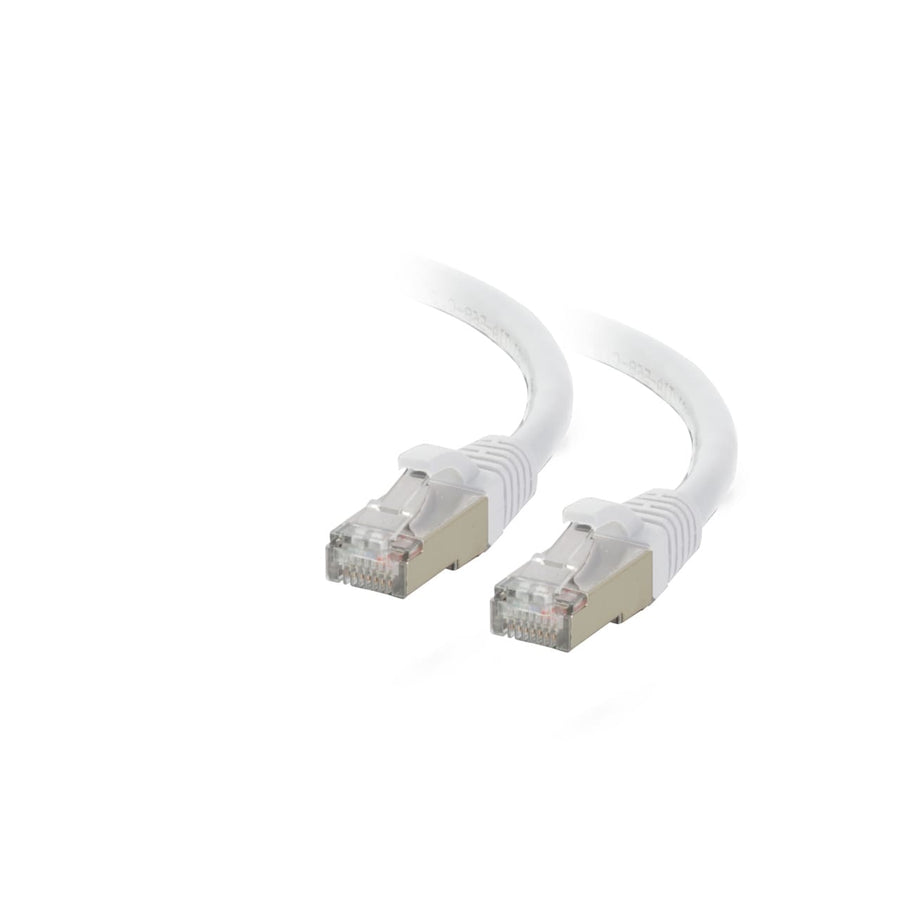

5ft (1.5m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - White
5ft Cat6A shielded STP Ethernet patch cable, white, supporting 10 Gbps data transfer for high-speed network environments
The C2G07384 is a 5ft (1.5m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in white, specifically engineered for high-performance 10 Gigabitate-T network environments. This cable is designed for use with network adapters, hubs, switches, routers, and DSL/cable modems, as well as HDBaseT applications. It features shielded twisted pair (STP) construction to protect high-speed connections from electromagnetic interference and noise. Each individual pair is bonded together to maintain twist-spacing up to the termination point, which minimizes Near-End Crosstalk (NEXT) and reduces impedance and structural return loss (SRL). The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements and supports a bandwidth of 500 MHz. The snagless connector design protects the RJ-45 lock in high-density environments, and the 50 µ in gold plating ensures reliable connectivity. This 26 AWG cable utilizes stranded copper conductors and FMPE insulation within a PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073840 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this C2G07384 cable work for 10GbE networks?
Yes, this Cat6a patch cable supports 10 Gbps data transfer rates and is designed for 10GBase-T ports, switches, and routers.
What is the purpose of the shielding on this Cat6a cable?
The Shielded STP (Shielded Twisted Pair) construction protects high-speed 10 Gigabit networks from noise and electromagnetic interference.
What do I need for a professional installation using this cable?
This is a patch cable only. For a complete installation, you may require accessories like the CG26847 LANtest Pro Remote Network Cable Tester or CG39002 LANsmart TDR Cable Tester.
Is this cable suitable for high-density patch panels?
Yes, the snagless connector design is specifically intended to protect the RJ-45 connector's lock when used in high-density environments.
What certifications does the C2G07384 meet?
This cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements and carries CE, REACH, and RoHS certifications.
