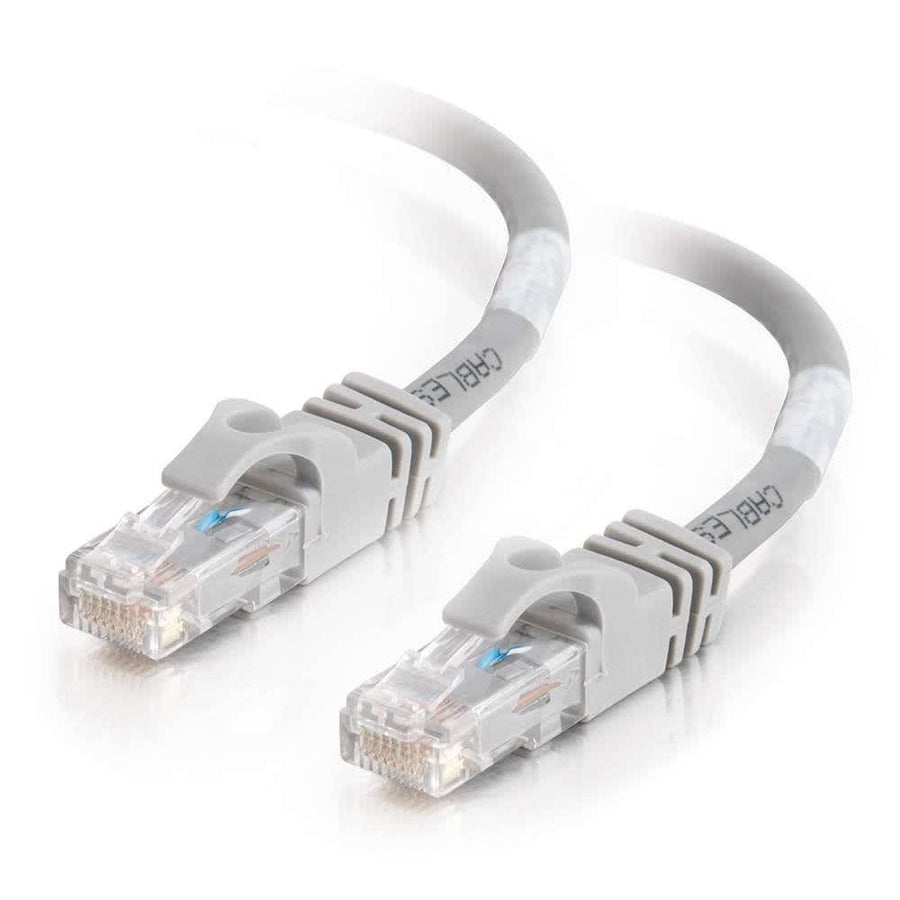

5ft (1.5m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Gray
5ft Cat6 crossover patch cable for peer-to-peer device connections, unshielded UTP with snagless connectors in gray
The CG31380 is a 5ft (1.5m) Cat6 snagless unshielded UTP network crossover patch cable in gray, specifically engineered for peer-to-peer connectivity. This cable uses a crossed pin configuration that allows two computers to share files or data directly without the requirement of a hub or switch. It is also an effective solution for connecting network switches or hubs that lack uplink ports to other network devices. This crossover cable supports Gigabit Ethernet speeds and is built to meet all TIA/EIA Cat6 standards, featuring a 500 mHz bandwidth. The design incorporates a shortened body plug to minimize Near-End Crosstalk (NEXT) levels and reduce impedance and structural return loss (SRL) for error-free transmission. Each cable features 24 AWG stranded copper conductors and a snagless PVC connector hood to protect the clips during frequent insertion and removal. This 0.24 in (6.2 mm) diameter cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120313809 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the CG31380 crossover cable?
This cable is designed to connect two computers together for peer-to-peer data sharing or to link two switches that lack uplink ports.
Will this cable work for high-speed Gigabit Ethernet?
Yes, this Cat6 crossover cable provides the necessary throughput to handle Gigabit Ethernet speeds and meets TIA/EIA standards.
Does the CG31380 feature strain relief?
The snagless design includes a PVC connector hood that protects the RJ-45 clips and provides strain relief during use.
What is the operating temperature range for this patch cable?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
What is the difference between this and a standard patch cable?
Unlike standard patch cables, the CG31380 features a crossed pin configuration specifically for peer-to-peer device connections.
