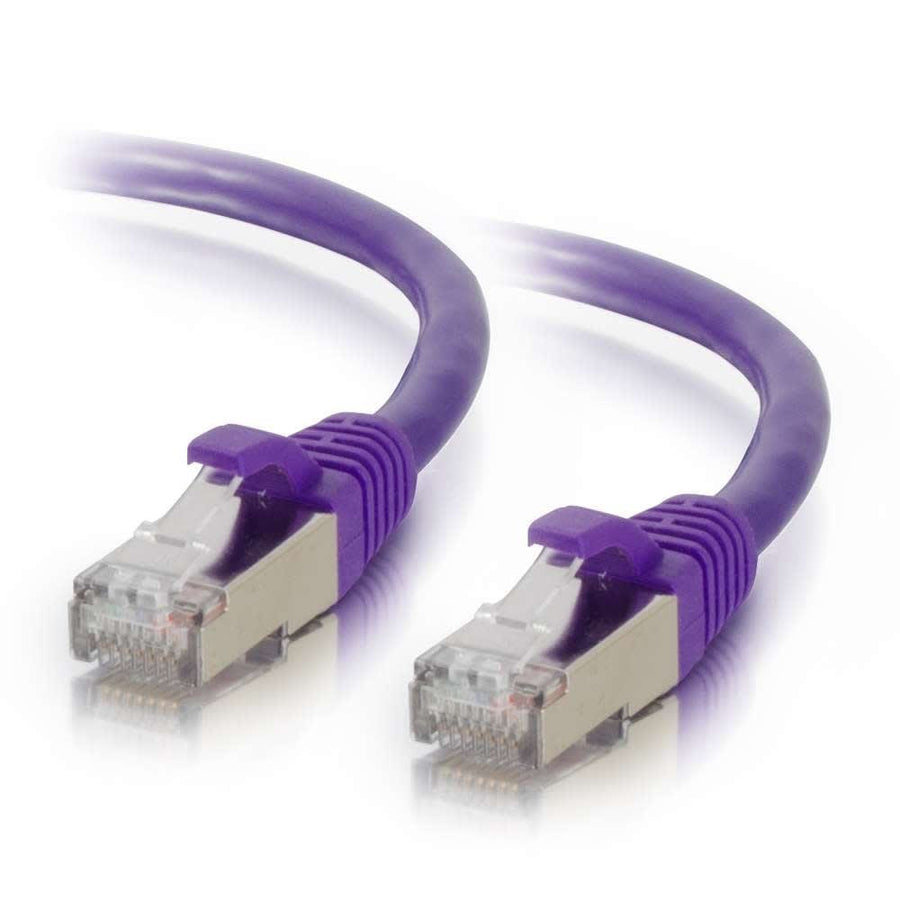

5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
5ft (1.5m) purple Cat6 STP shielded patch cable with snagless boots and 26AWG stranded copper conductors
The C2G CG00901 is a 5 ft (1.5 m) Cat6 shielded patch cable designed to protect high-speed networks from electromagnetic interference and noise. This SSTP cable is ideal for bandwidth-intensive voice, data, and video distribution, helping to drastically reduce impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in demanding environments. The construction features 26AWG bare copper stranded conductors and FM-PE insulation to minimize Near-End Crosstalk (NEXT) levels. For ease of installation and identification, this purple cable features a snagless boot design and includes an individual length label on each cable for quick recognition. This cable uses a T568B wiring scheme and features PVC jacket and hood material, making it a reliable choice for professional network infrastructure and color-coded cabling deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | STP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009016 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the wiring scheme for the C2G CG00901?
The CG00901 is wired using the T568B scheme and features 26AWG stranded copper conductors.
Is the CG00901 cable suitable for environments with high interference?
Yes, this is an STP (Shielded Twisted Pair) cable designed to reduce electromagnetic interference, impedance, and structural return loss (SRL).
Does this cable meet standard Cat6 requirements?
Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements for reliable performance.
How can I identify the length of this cable during installation?
Each individual cable is marked with a length label to assist with rapid identification in the field.
What is the connector type on this patch cable?
The CG00901 features RJ-45 male connectors with a snagless, booted design for protected termination.
