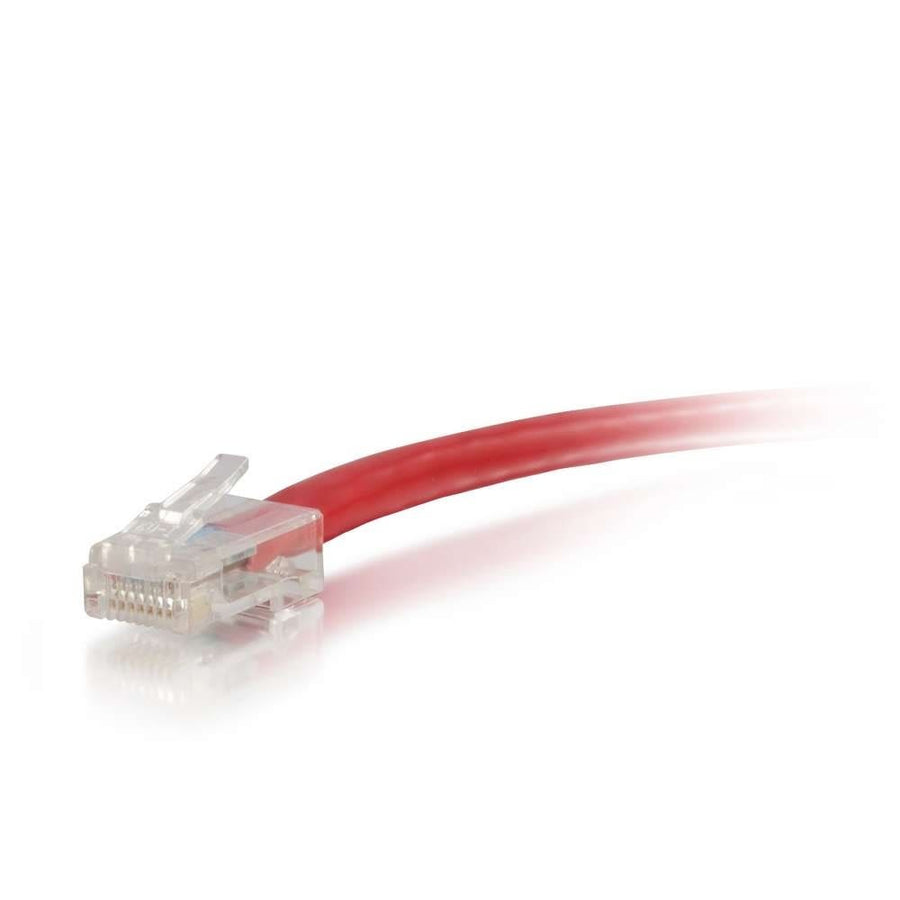

5ft (1.5m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Red
5ft Red Cat6 UTP patch cable with stranded copper conductors and RJ-45 male connectors
The C2G CG04152 is a 5ft (1.5m) Cat6 Unshielded UTP Ethernet Network Patch Cable in red, designed for bandwidth-intensive voice, data, or video distribution in Gigabit computer networks. This cable uses 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and features a T568B wiring scheme. Each individual pair is bonded together to maintain twist-spacing through to the termination point, which helps reduce impedance and structural return loss (SRL) to meet all Cat6 TIA/EIA standards. This non-booted cable features an RJ-45 male connector on both ends and is constructed with a PVC jacket rated for temperatures up to 75°C. This specific red color is part of a larger series of Cat6 Non-Booted Patch Cables available in various colors and lengths to assist with network color-coding during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041528 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG04152?
This patch cable uses the T568B wiring scheme for both RJ-45 male connectors.
What are the technical electrical specifications for this Cat6 cable?
The cable features a maximum conductor DC resistance of 9.38#/100m, 100# impedance, and 5600pf/100m capacitance.
Does this cable support high-speed Gigabit networks?
Yes, it is designed for Gigabit computer networks requiring bandwidth-intensive video or data distribution.
What is the maximum temperature rating for the jacket?
The PVC jacket has a temperature rating of 75°C.
Are there other colors and lengths available in this series?
Yes, this SKU is part of a series with 10 color options and 22 different length options.
