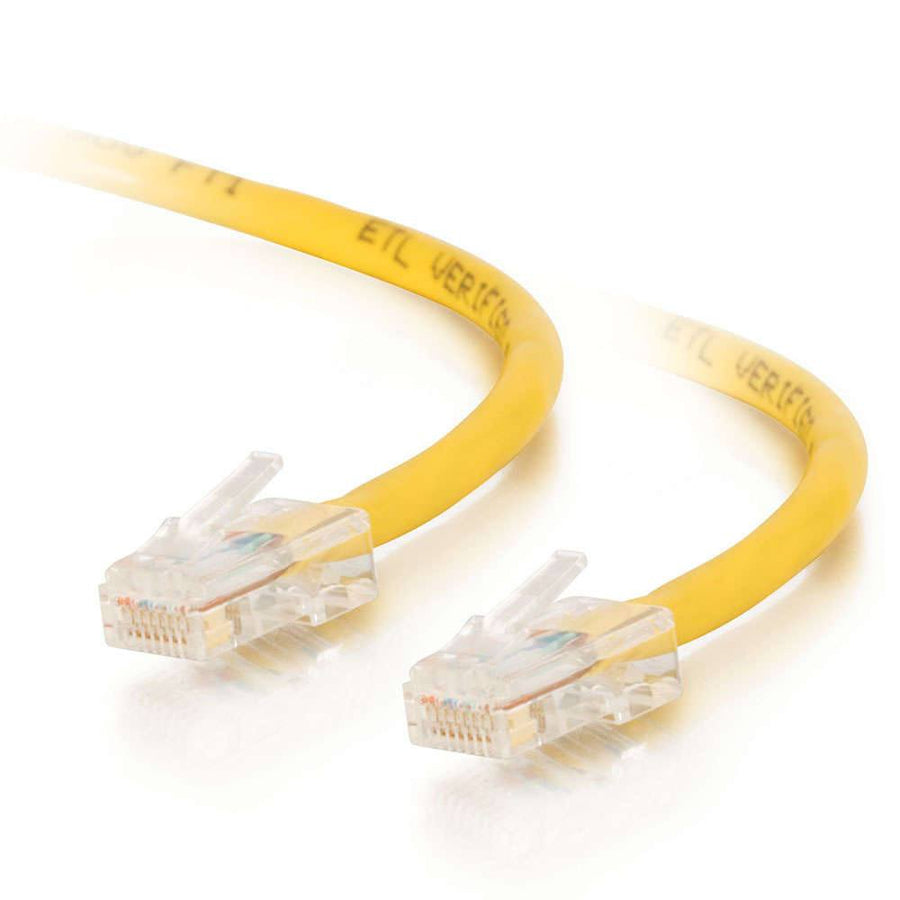

5ft (1.5m) Cat5e Non-Booted Unshielded UTP Network Crossover Patch Cable - Yellow
5ft Cat5e crossover patch cable in yellow, featuring RJ-45 male connectors for direct device-to-device networking
The CG24504 is a 5ft (1.5m) Cat5e crossover patch cable designed to facilitate direct peer-to-peer connections between two computers for file or data sharing. This specific wiring configuration allows for connecting two computers together without the requirement of an intermediary hub or switch. Additionally, this yellow crossover cable can be used to link network switches or hubs that lack an uplink port. This cable is constructed using stranded copper conductors and high-density polyethylene (HDPE) insulation to maintain consistent twist-spacing throughout the line. This design helps to minimize Near-End Crosstalk (NEXT) levels, structural return loss (SRL), and impedance. The cable features a non-booted, non-shielded (UTP) design with a 0.21 in (5.3 mm) diameter and is rated for a bandwidth of 350 mHz. Operating within a temperature range of -4° to 176°F (-20° to 80°C), this cable is a reliable solution for specialized networking tasks. This SKU is part of a larger series of crossover cables available in various lengths up to 100ft and multiple colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 17
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Non-Booted |
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the CG24504 crossover cable?
This cable enables a direct connection between two computers or two switches/hubs without needing a switch or hub to facilitate the connection.
Will this cable work for standard straight-through networking?
No, this is a crossover cable with a T568B wiring scheme designed specifically for peer-to-peer device connections.
What are the technical specifications for the CG24504 cable?
The cable is a 5ft (1.5m) Cat5e UTP cable with 24 AWG stranded copper conductors and a 0.21 in (5.3 mm) diameter.
Are there other color or length options for this series?
Yes, this series includes other colors like Black, Gray, Orange, and Red, and lengths ranging from 3ft to 100ft.
Does this cable include any specific certifications?
The CG24504 is compliant with REACH, RoHS, and CE standards, and it is also NDAA 889 compliant.
