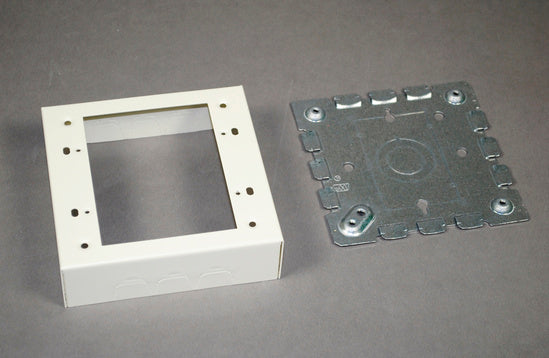

5747-2WH Two Gang Shallow Switch and Receptacle Box Fitting in White
White two-gang shallow box for standard switches and receptacles, compatible with NEMA double-gang faceplates
The Wiremold 5747-2WH is a white, two-gang shallow box designed for use within the 500® and 700® Series raceway systems. This steel fitting accommodates standard shallow switches and receptacles, including single-gang combination devices. The unit features a 4 3/4" L x 4 3/4" W (121mm x 121mm) footprint and is engineered to accept NEMA double-gang standard faceplates. For cable entry, the base is equipped with two 1/2'' trade size KOs. This TAA compliant component meets RoHS material restrictions and is UL certified.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Canadian Certified | No |
| Color | White |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What kind of faceplates fit the 5747-2WH?
This box accepts standard NEMA double-gang faceplates.
Can I use this with single-gang combination devices?
Yes, it is designed for standard shallow switches and receptacles, which include single-gang combination devices.
What are the knockout sizes for this box?
The base features two 1/2'' trade size KOs for wire entry.
Is this product TAA compliant?
Yes, the 5747-2WH is TAA compliant and meets RoHS material restrictions.
