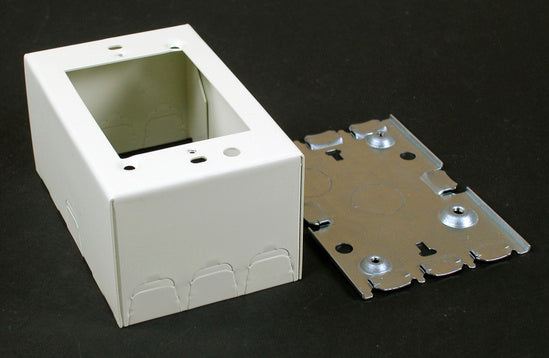

5744WH One Gang Extra Deep Switch and Receptacle Box Fitting in White
Extra deep one gang steel box in white, featuring a 2.88 in depth and 1/2'' trade size KOs
The Wiremold 5744WH is an extra deep, single-gang steel box designed to accommodate specialized deep devices. This includes momentary contact switches, remote control switches, and various hospital signaling system devices that require more internal space than a standard box provides. The unit measures 4 5/8" L x 2 7/8" W (117mm x 73mm) and features 1/2'' trade size KOs on the base for conduit entry. This white finish box is compatible with NEMA single-gang standard faceplates. It is a TAA compliant product that meets RoHS material restrictions. For installations requiring Canadian certification, the suffix should be changed to WHC.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 2.88 in (7.3 cm) |
| Canadian Certified | No |
| Color | White |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What kind of devices fit in the 5744WH?
The 2.88 in depth is designed for deep devices such as remote control switches, momentary contact switches, and hospital signaling system devices.
What faceplates are compatible with this box?
This single-gang box accepts standard NEMA single-gang faceplates.
Does this box include conduit entries?
The base of this box features 1/2'' trade size KOs for conduit connections.
Is there a Canadian version of this box?
Yes, to order the Canadian certified version, change the WH color suffix to WHC.
What is the size of this one gang box?
The dimensions for this single-gang box are 4 5/8" L x 2 7/8" W (117mm x 73mm).
