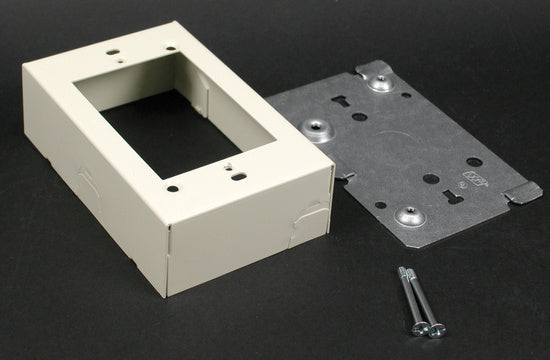

5741WH Switch and Receptacle Box Fitting in White
White steel box fitting for 500 and 700 Series raceways, supporting single-gang switches and receptacles
The Wiremold 5741WH provides a specialized mounting solution for shallow-type devices within 500 and 700 Series raceway systems. This steel fitting accommodates single-gang standard NEMA faceplates and is designed for use with single-gang combination devices, three-way switches, and single or double pole switches. It also supports receptacles, including three-wire HICking models. The base features 1/2'' trade size Kos, and the specific placement of the twistouts on the ends allows installers to run raceways in close proximity to interior trim for a cleaner finish. This TAA compliant component is RoHS compliant and meets material restrictions for environmentally conscious installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Canadian Certified | No |
| Color | White |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What types of devices fit in the 5741WH box?
This fitting supports single-gang combination devices, single or double pole switches, three-way switches, and receptacles, including three-wire HICking models.
Which faceplates are compatible with this fitting?
The 5741WH accepts standard NEMA single-gang faceplates to complete the installation.
Can this be used for raceways near wall trim?
Yes, the position of the twistouts on the ends is designed to allow raceway runs to stay close to interior trim.
Is this product TAA compliant?
The 5741WH is TAA compliant and meets RoHS material restrictions.
Is this the version for Canadian installations?
No, this specific SKU is for US use. For Canadian versions, use the WHC color suffix or the V prefix change as specified by the manufacturer.
