5738AWH Solid Base Fixture Box Fitting in White
White solid base fixture box fitting for hanging fixtures, featuring 1/2'' trade size KOs and multiple mounting screw center patterns

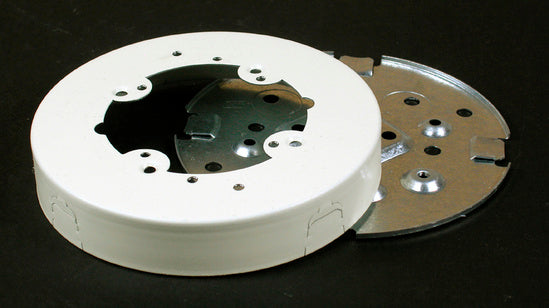

The Wiremold 5738AWH is a white solid base fixture box fitting designed to facilitate the hanging of various fixtures. This steel unit features an outside diameter of 5 1/2" (140mm) and provides versatility through its mounting capabilities. The cover accommodates devices with mounting screw centers of 2 3/4", 3 1/2", and 4 1/16" (70mm, 89mm, and 103mm). For installation, the base includes four holes for fixture studs, a raised section for no-bolt fixture-studs, and four 1/2'' trade size KOs. When the fixture is removed, this unit can function as a junction or pull box if paired with a 5736 Blank Cover.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 6" x 6" x 6" (152.4 x 152.4 x 152.4 mm) |
| Canadian Certified | No |
| Color | White |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this fixture box fit my lighting fixture?
The cover accepts fixtures with mounting screw centers at 2 3/4", 3 1/2", or 4 1/16" (70mm, 89mm, and 103mm).
Can this be used as a junction box?
Yes, this unit can serve as a junction or pull box when used in conjunction with a 5736 Blank Cover.
What size conduits are compatible with the KOs?
The base is equipped with four 1/2" trade size KOs.
How does this differ from other versions in the series?
This 5738AWH model is the white finish version; other color options in the series include Ivory.
Does this include the necessary installation hardware?
The product is the fixture box fitting itself; refer to the installation manuals for specific mounting requirements.
