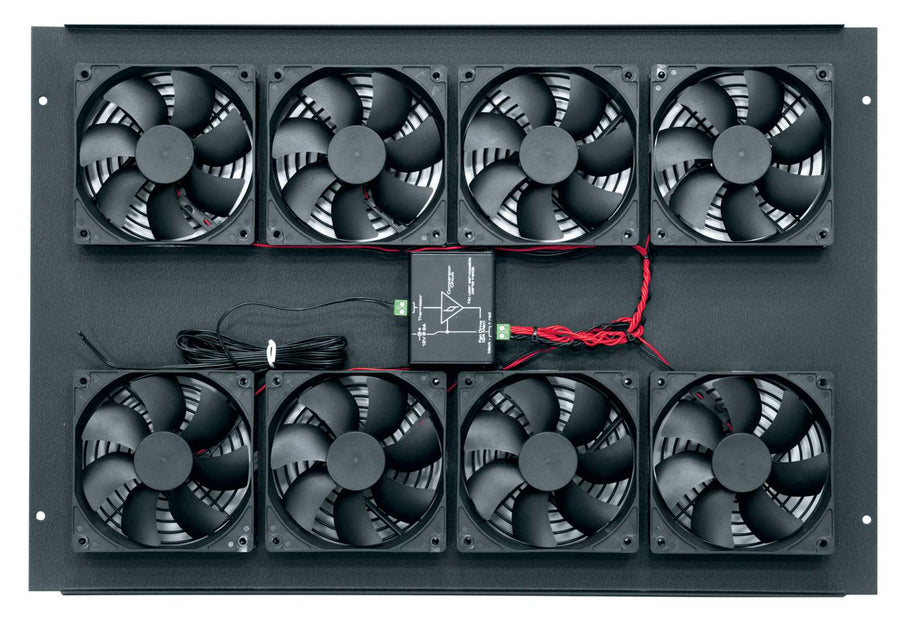

552 CFM Fan Top, 220 - 240VAC for BGR Series
Active fan top for BGR Series racks, delivering 552 CFM via 8 mounted 4 in fans at 38 dBA
The IBGR-552FT is an active component designed specifically for use with the Middle Atlantic BGR Series. This fan top facilitates thermal management by utilizing 8 mounted 4 in (10.2 cm) fans to move 552 CFM of airflow. During operation, the unit produces 38 dBA of noise. This specific model is configured for 200-240 V AC input voltage, making it suitable for international applications. It operates via a 12 VDC power type. Note that this is an active unit, but it is not controlled; no fan controller is included with this SKU. The assembly features a footprint of 22.38 in (56.9 cm) in width and 15.72 in (39.9 cm) in height, with a depth of 1.05 in (2.7 cm). This unit is TAA compliant and carries CE certification. For installation submittals, please refer to the BGR Series Fan Tops Instruction Sheet or the BGR Series A&E Specification Sheet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| CFM | 552 |
| Depth | 1.05 in (2.7 cm) |
| Fan Size | 4 in (10.2 cm) |
| Height | 15.72 in (39.9 cm) |
| Shipping Weight | 9.6 lbs (4.4 kg) |
| Volts DC | 12 VDC |
| Width | 22.38 in (56.9 cm) |
All other specifications 9
| Available Internationally | Yes |
| Base Series | BGR |
| Component Type | Active |
| Controlled | No |
| Fan Controller Included | No |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| UPC | 656747187858 |
| Warranty | 3 years |
Resources
Questions about this part
Will the IBGR-552FT work with my BGR Series rack?
Yes, this fan top is designed specifically as a top option for the Middle Atlantic BGR Series.
Does this fan top include a controller for speed adjustment?
No, the IBGR-552FT is an active unit that is not controlled and does not include a fan controller.
Is the IBGR-552FT TAA compliant for government contracts?
Yes, this product is TAA compliant and carries CE certification.
What is the power requirement for this fan top?
This model requires a 200-240 V AC input voltage and operates on a 12 VDC power type.
Which document should I use for submittals?
Installers can use the BGR Series A&E Specification Sheet or the BGR Series 3 Part Specification for submittals.
