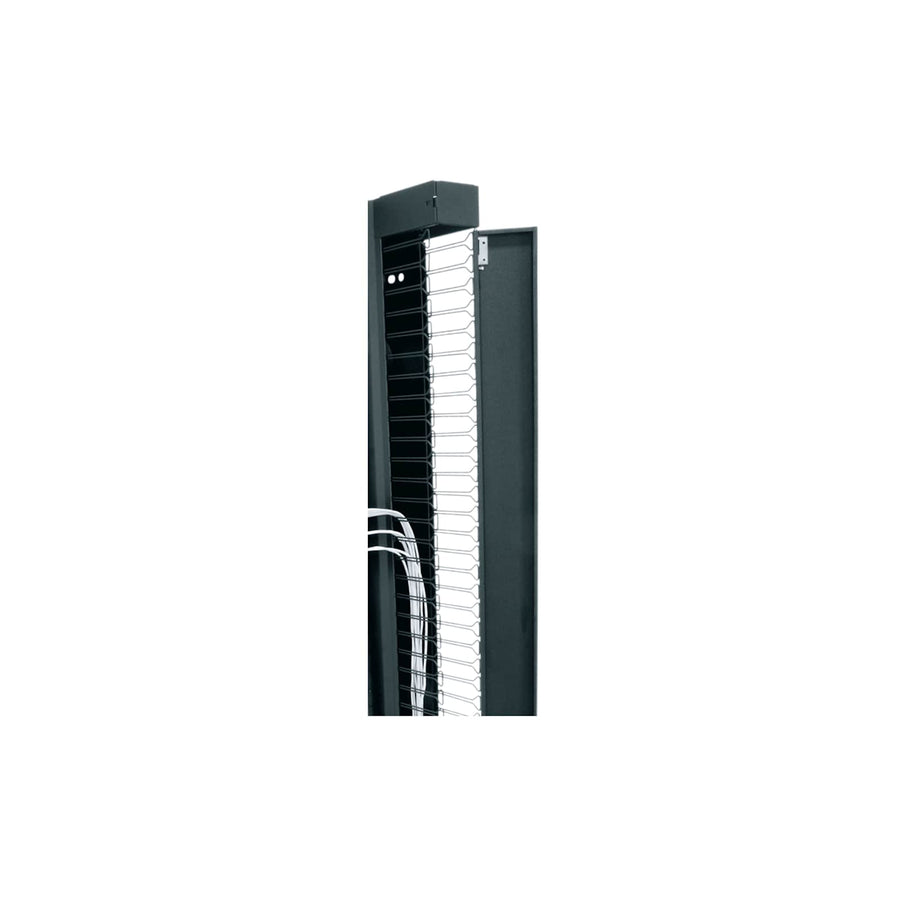

51 RU Cable Duct, 10 Inches Wide - Single Duct
Vertical steel cable duct for 51 RU racks, 10 inches wide, featuring a single duct design and locking steel doors
The VCD-10-51-SC is a 51 RU vertical steel cable duct designed to route, control, and dress cabling within professional rack environments. This external component is 10 in (25.4 cm) wide and 95.98 in (243.8 cm) high, providing a dedicated pathway to organize cable runs while protecting the bend radius of sensitive wiring. This specific model features a single duct configuration, as opposed to the dual duct versions available in the series. The unit is constructed from sturdy steel with a black powder coat finish and includes pre-installed grommets and locking steel doors for secure cable management. The smooth steel cable fingers are positioned in rackspace increments to allow for precise control of cable access locations. This vertical duct is compatible with RL, RLA, MK, and R4 Series open frame racks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 12.8 in (32.5 cm) |
| Height | 95.98 in (243.8 cm) |
| Package Count | 1 |
| Rack Units | 51 RU |
| Width | 10 in (25.4 cm) |
| Component Type | External Vertical |
| UPC | 656747095412 |
Resources
Questions about this part
Will the VCD-10-51-SC work with my open frame rack?
This vertical cable duct is specifically designed to work with RL, RLA, MK, and R4 Series open frame racks.
What is the difference between this and the dual duct versions?
This SKU is the single duct version; the series also offers dual duct models that provide both front and rear channels for cabling.
Does this cable duct help with cable protection?
Yes, the smooth steel cable fingers are arranged in rackspace increments to help protect cable bend radius and control access locations.
What documents are available for submittals?
You can find the VCD Series Instruction Sheet, CAD Technical Specification Drawings, and Revit Models in the resources section for submittal and planning.
How is the cabling secured within the duct?
The unit includes pre-installed grommets and locking steel doors to protect and secure the cables as they are routed.
