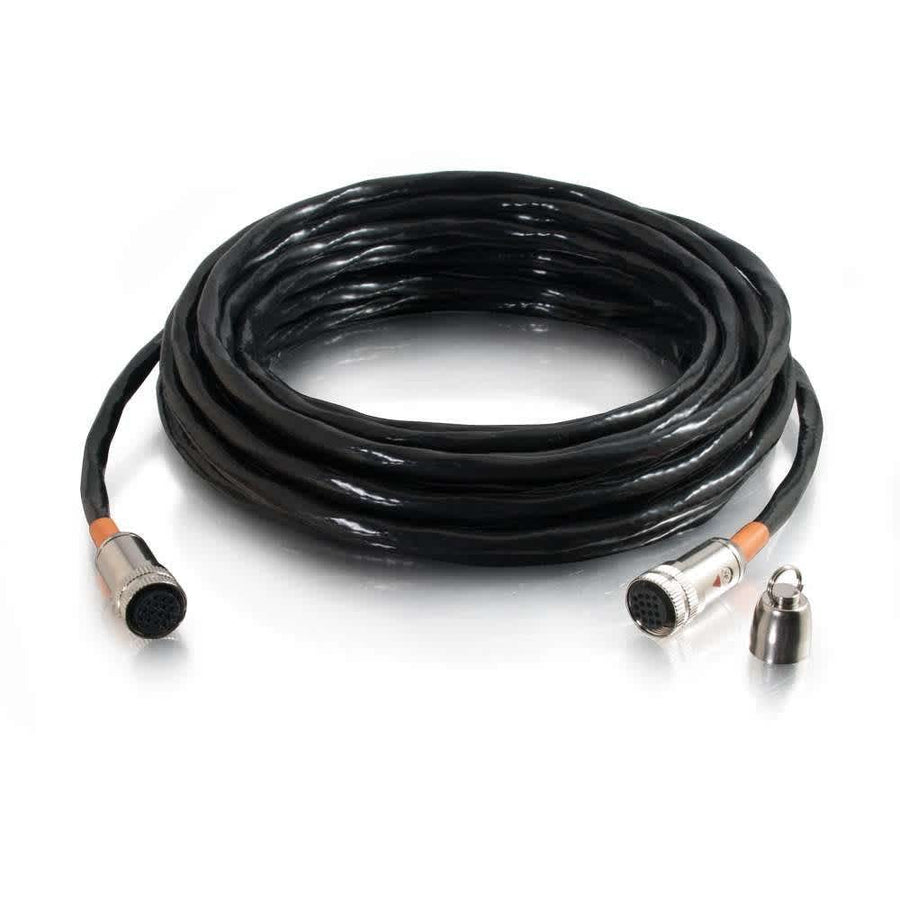

50ft RapidRun® Multi-Format Runner Cable
50ft plenum-rated runner cable for RapidRun systems, supporting VGA signals and UXGA resolution
The C2G CG60013 is a 50 ft (15.2 m) RapidRun® Multi-Format Runner Cable designed to serve as a standard for professional in-wall audio/video installations. This cable functions by providing a high-quality, pre-terminated connection path between wall plates and equipment, eliminating the need for field terminations. It is built with 26 AWG wire and features a 0.31 in (8 mm) cable diameter and a 3.25 in (82.5 mm) bend radius. This specific runner is rated for plenum environments, carrying both CMP and FT6 jacket ratings to meet fire safety requirements in air-handling spaces. The cable is equipped with two 15-pin female RapidRun connectors to interface with RapidRun Multi-Format flying leads and wall plates. For video applications, it supports VGA input and output with a maximum video resolution of UXGA (1600x1200). The jacket is constructed from PVC and is compliant with RoHS, REACH, TAA, and NDAA 889 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.25 in (82.5 mm) |
| Cable Diameter | 0.31 in (8 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shipping Weight | 3.5 lbs (1.6 kg) |
| Wire Gauge | 26 |
| Cable Type | RapidRun |
| Color | Black |
| Connector 1 | (1) RapidRun 15-pin Female(1) RapidRun 15-pin Female |
All other specifications 11
| Connector 2 | (1) RapidRun 15-pin Female(1) RapidRun 15-pin Female |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120600138 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | UXGA (1600x1200) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Resources
Questions about this part
Will the CG60013 work with my RapidRun wall plates and flying leads?
Yes, this runner is designed specifically to work with RapidRun Multi-Format flying leads and wall plates to create flexible, high-quality connections.
Can this cable be used in plenum-rated ceiling or wall spaces?
Yes, the CG60013 features a CMP and FT6 rated jacket, making it suitable for plenum-rated applications.
What is the maximum video resolution supported by this runner cable?
This cable supports VGA video signals with a maximum resolution of UXGA (1600x1200).
Does this cable require field terminations during installation?
No, the RapidRun system uses pre-terminated break-away flying leads and wall plates to ensure efficient installation without field terminations.
What are the connector types on the CG60013?
This 50 ft runner cable is equipped with two 15-pin female RapidRun connectors.
