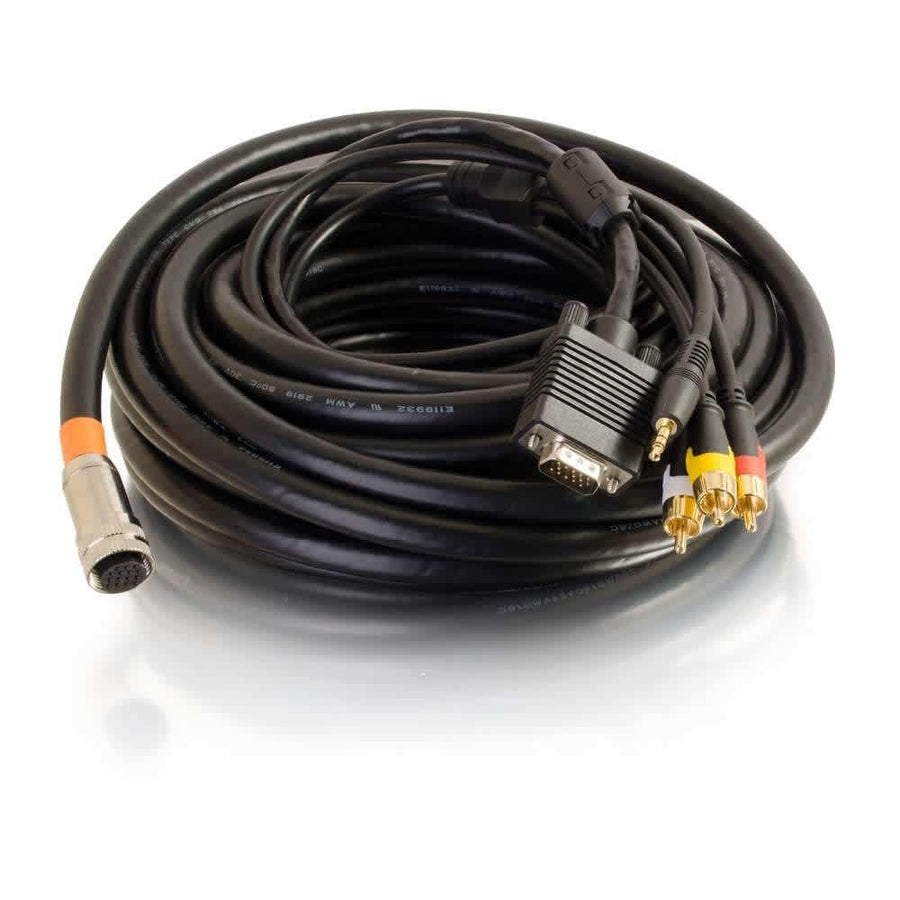

50ft RapidRun® Multi-Format All-In-One Runner Cable - In-Wall CMG-Rated
50ft RapidRun multi-format runner cable for in-wall use, featuring VGA, 3.5mm, and RCA connectors with a CMG-rated jacket
The C2G CG60071 is a 50 ft (15.2 m) RapidRun® Multi-Format All-In-One Runner Cable designed specifically for in-wall audio/video installations in educational and institutional environments. This shielded runner cable facilitates high-quality connections without the need for field terminations, making it an efficient choice for professional system integrators. It is engineered to deliver VGA video and 3.5mm stereo audio from a source to a display, with a maximum video resolution of UXGA (1600x1200), though this varies based on the specific equipment and total cable length used. This specific SKU is the Orange color code version, intended for use with Multi-Format (Orange) wall plates and Break-away flying leads. The jacket is CMG-rated and FT4 rated, utilizing a PVC material suitable for in-wall applications. This cable operates within a temperature range of -4° to 176°F (-20° to 80°C). For a complete RapidRun installation, this runner requires either two break-away flying leads, two wall plates, or one of each to terminate both ends of the cable.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Cable Diameter | 0.35 in (9 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 6.06 lbs (2.8 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 17
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Shielded |
| Cable Type | RapidRunVGA |
| Color | Black |
| Connector 1 | (1) 3.5mm Stereo Male(1) 3.5mm Stereo Male(1) RCA Composite Video Male(1) RCA Composite Video Male(1) RCA Stereo Audio Male(1) RCA Stereo Audio Male(1) VGA Male(1) VGA Male |
| Connector 2 | (1) RapidRun 15-pin Female(1) RapidRun 15-pin Female |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120600718 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | UXGA (1600x1200) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Questions about this part
What do I need to buy to complete this RapidRun installation?
This runner cable requires termination at both ends. You must purchase either two Break-away flying leads, two wall plates, or one of each to create a complete connection.
Will this cable work with my existing RapidRun wall plates?
This CG60071 SKU is the Orange color code version; it must be used with Multi-Format (Orange) wall plates and Break-away flying leads.
What is the maximum resolution supported by this runner?
This cable supports a maximum video resolution of UXGA (1600x1200), though the actual resolution depends on your specific equipment and the total cable length.
What are the termination requirements for the CG60071?
The cable features two RapidRun 15-pin Female connectors on one end and a series of VGA, 3.5mm, and RCA Male connectors on the other.
Is this cable suitable for in-wall installation in classrooms?
Yes, it is CMG-rated and FT4 rated with an in-wall rated PVC jacket, making it suitable for professional institutional and educational environments.
