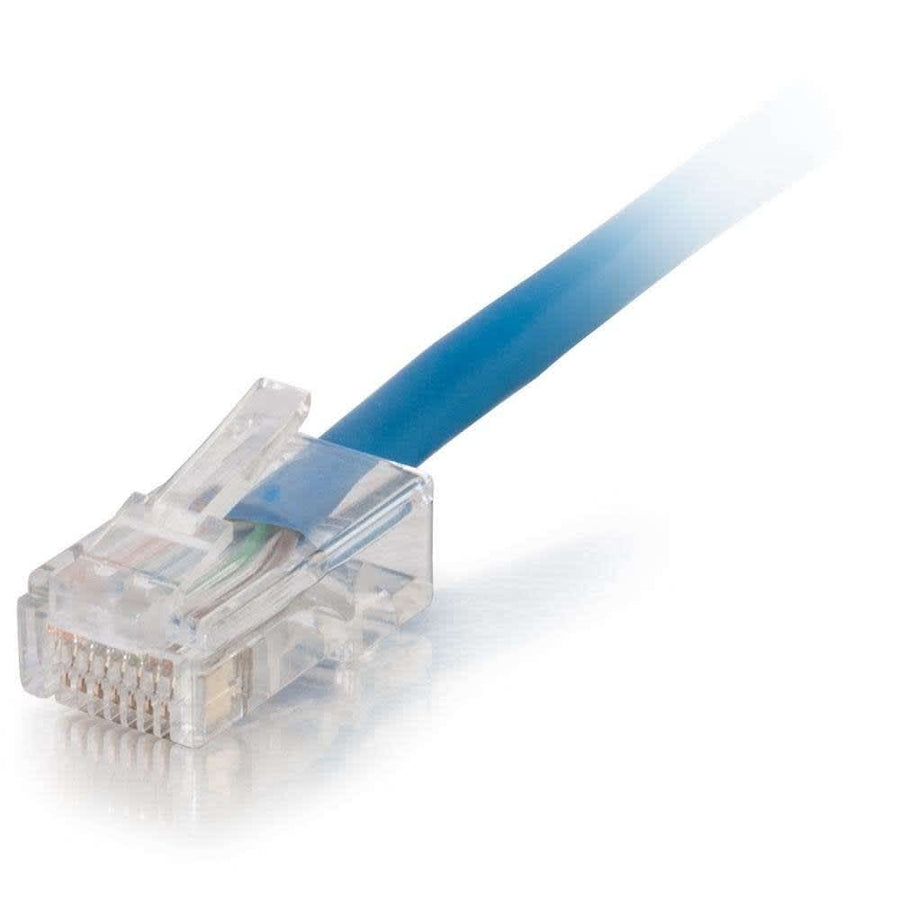

50ft Cat5e Non-Booted UTP Unshielded Ethernet Network Patch Cable - Blue
50ft Cat5e plenum patch cable, CMP and FT6 rated, featuring unshielded UTP construction and blue PVC jacket
The CG15248 is a 50ft (15.2 m) Cat5e Unshielded Twisted Pair (UTP) patch cable designed for environments with strict building codes. This plenum-rated cable is suitable for routing through air handling spaces, such as those found in dropped ceilings or under raised floors in schools, hospitals, and commercial buildings. It features a blue PVC jacket that is both CMP and FT6 rated to meet safety requirements for plenum installations. This cable utilizes stranded copper conductors and is tested up to 350MHz to support bandwidth-intensive voice, data, and video distribution applications. Both ends are terminated with 50 micron gold plated RJ-45 male connectors. This TAA compliant cable is designed to reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels to ensure reliable network performance.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.99 lbs (0.5 kg) |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
All other specifications 12
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152484 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the CG15248 rated for plenum air spaces?
Yes, this cable is CMP and FT6 rated, making it suitable for installation in plenum spaces like dropped ceilings or under raised floors.
What type of connectors does the CG15248 use?
The CG15248 features 50 micron gold plated RJ-45 male connectors on both ends for reliable connectivity.
Is this cable suitable for high-bandwidth applications?
Yes, this Cat5e cable is tested to 350MHz and is designed to handle bandwidth-intensive voice, data, and video distribution.
Is the CG15248 TAA compliant for government projects?
Yes, this product is TAA compliant and meets NDAA 889 standards.
What is the construction of the conductors in this cable?
The CG15248 is constructed with stranded copper conductors and utilizes a UTP (Unshielded Twisted Pair) design to minimize Near-End Crosstalk (NEXT).
