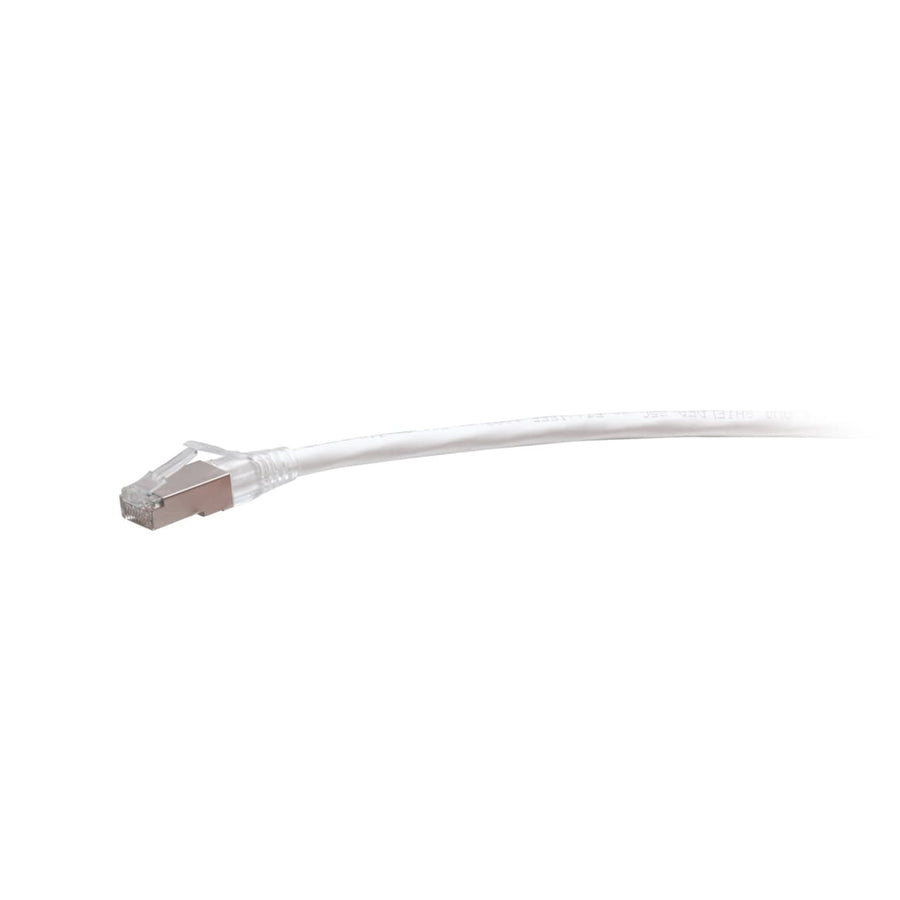

50ft (15.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
50ft TAA-compliant Cat6a shielded STP patch cable with snagless RJ45 connectors in white
The C2G43977 is a 50ft (15.2m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-speed data environments. This cable is built to meet stringent TAA requirements, making it suitable for United States government projects and facilities. It features a shielded STP construction with aluminum foil to counter electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, which is essential for protecting 10GBase-T network connections. The cable utilizes 26 AWG stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity across high-bandwidth applications. Each end is terminated with a snagless RJ45 male connector, which protects the clips from snapping during high-frequency insertion cycles. This white, CMR-rated riser cable is suitable for voice, data, and video distribution, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439776 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43977 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable, meeting the requirements for use in United States government projects.
Can this cable be used for 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBASE-T applications, including use with network adapters, switches, routers, and patch panels.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Does this cable provide shielding against interference?
Yes, it uses a shielded STP (Shielded Twisted Pair) design with aluminum foil to protect against EMI, RFI, and alien crosstalk.
What kind of jacket rating does this cable have?
This is a CMR-rated riser cable with a PVC jacket, suitable for vertical shaft installations.
