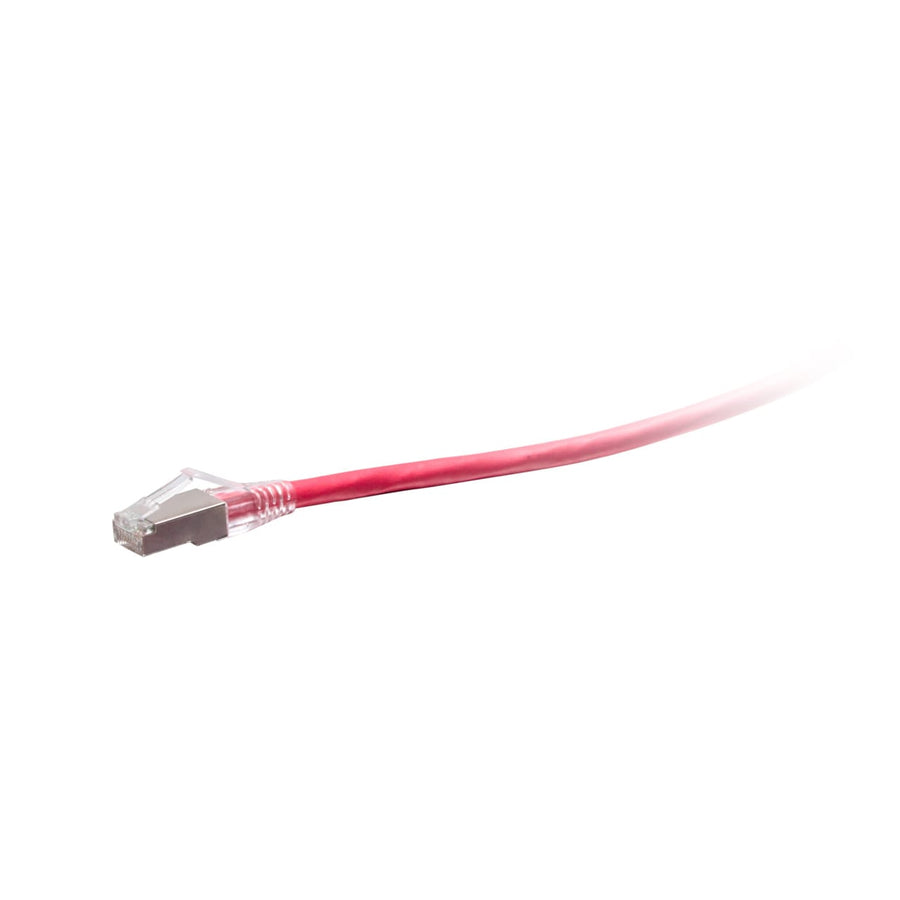

50ft (15.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
50ft TAA-compliant Cat6a shielded network cable in red, featuring snagless RJ45 connectors for 10GBase-T performance
The C2G43893 is a 50 ft (15.2 m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable in red, specifically engineered for high-speed 10GBase-T environments. This passive cable is designed to protect network integrity in high-bandwidth applications by countering EMI, RFI, and alien crosstalk. It features stranded copper conductors and is constructed with high-quality, made in the USA raw cable to ensure reliable, consistent performance across voice, data, and video distribution. The cable utilizes 50-micron gold-plated contacts to improve signal integrity and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ45 connector design protects the clips from being snapped off, making it an excellent choice for applications involving frequent insertion cycles. This CMR rated, riser-rated PVC jacketed cable is suitable for use in United States government projects and facilities requiring TAA compliance. It operates within a temperature range of -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438939 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43893 TAA compliant?
Yes, this is a TAA-compliant cable, making it suitable for use in United States government projects and facilities.
What kind of shielding does this Cat6a cable have?
This is a Shielded STP (Shielded Twisted Pair) cable designed to protect 10GBase-T networks from electromagnetic interference (EMI) and alien crosstalk.
Will this cable work for 10 Gigabit Ethernet?
Yes, this cable meets ANSI/TIA-568.2-D standards and is designed to support bandwidth-intensive 10GBase-T applications.
Does the C2G43893 include snagless boots?
Yes, the cable features a snagless RJ45 connector design to protect the clips from being snapped off during installation or frequent use.
What is the jacket rating for this cable?
This cable has a CMR rated, riser jacket made of PVC, suitable for various installation environments.
