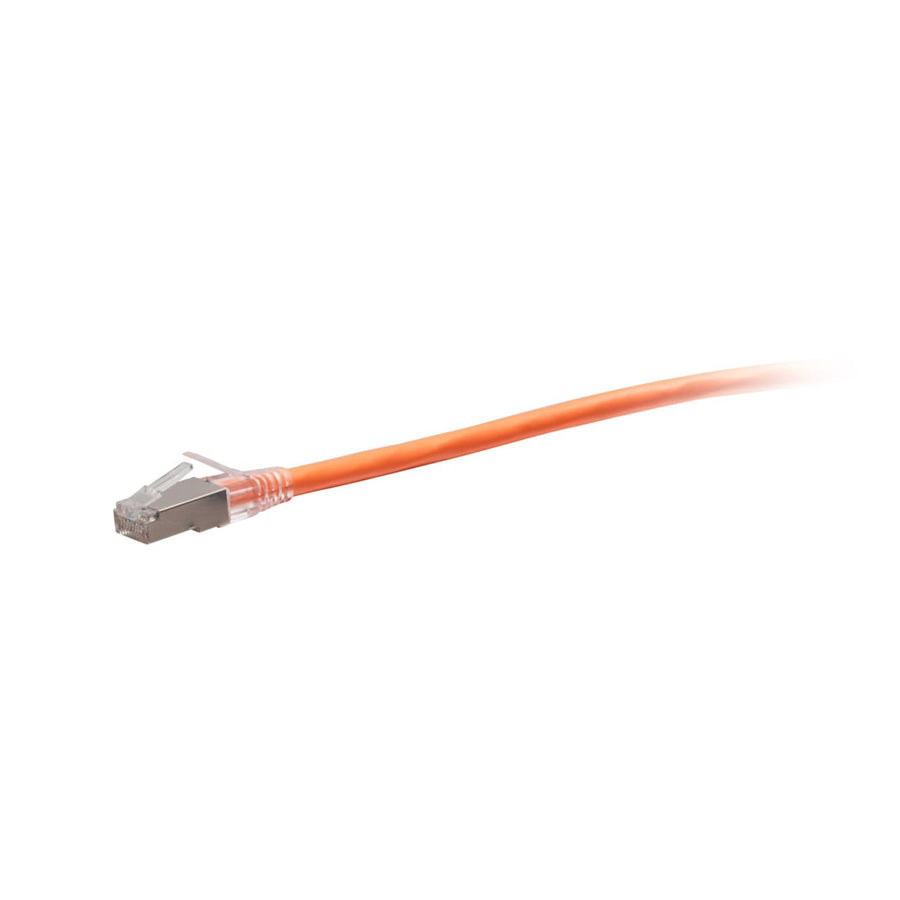

50ft (15.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
50ft TAA-compliant Cat6a shielded STP network cable in orange with snagless RJ45 connectors for 10GBase-T applications
The C2G43935 is a 50 ft (15.2 m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-performance data environments. This orange-jacketed cable is engineered for 10GBase-T ports and equipment, including routers, switches, hubs, network adapters, and patch panels. It is specifically constructed to protect high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This cable features a shielded STP construction with an aluminum foil shield and uses high-quality, made in the USA copper stranded conductors for reliable performance. The 26 AWG wires are terminated with RJ-45 male connectors featuring 50-micron gold-plated contacts to maintain signal integrity. With a CMR rated PVC jacket, this cable is suitable for riser applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it a robust choice for bandwidth-intensive voice, data, and video distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439356 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43935 TAA compliant for government projects?
Yes, this cable is TAA-compliant and meets the requirements for use in United States government facilities and projects.
What is the maximum data rate and standard for the C2G43935?
This Cat6a cable supports 10GBase-T (10 Gigabit Ethernet) and meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
How does the shielding on this C2G43935 cable work?
It utilizes a Shielded STP construction with an aluminum foil shield designed to mitigate EMI, RFI, and alien crosstalk in high-speed networks.
What type of installation environment is this cable for?
This cable features a CMR rated jacket, making it suitable for riser-rated applications.
What is the connector type on this C2G43935 cable?
The cable is terminated with (1) RJ-45 Male connector on each end, featuring a snagless design to protect the clips.
