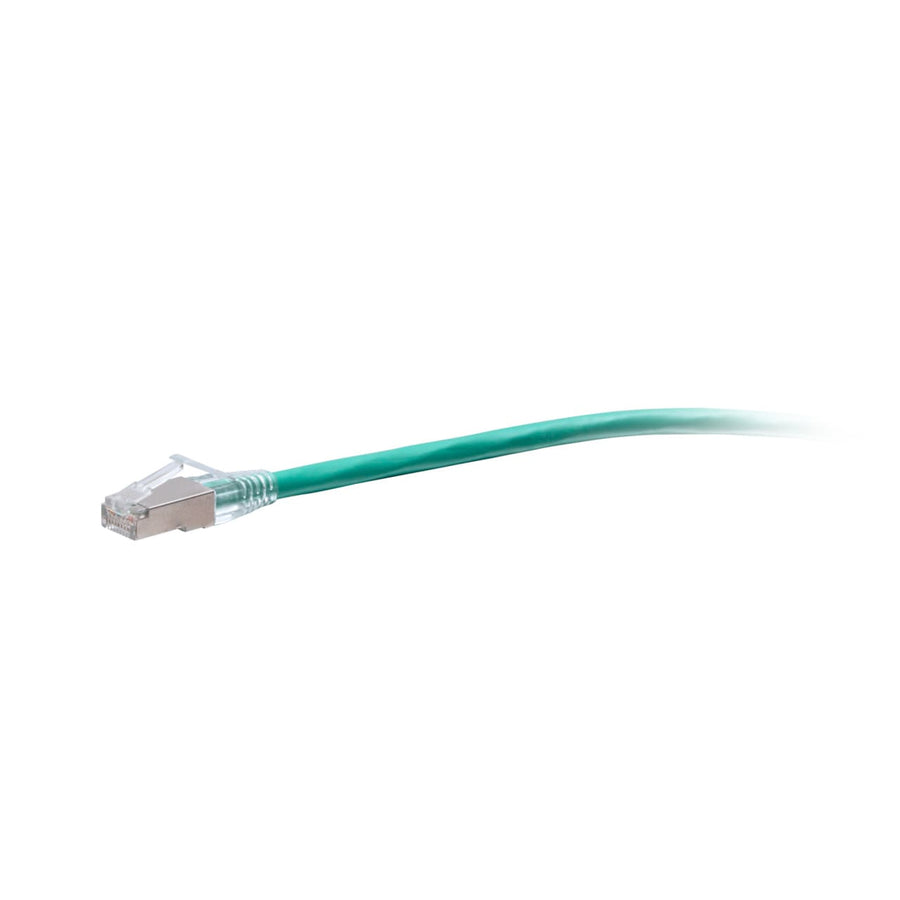

50ft (15.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
50ft TAA-compliant Cat6a shielded STP network cable, green, with snagless RJ45 connectors
The C2G43872 is a 50 ft (15.2 m) TAA-compliant Cat6a snagless shielded (STP) network cable in green. Designed to meet stringent requirements for United States government projects and facilities, this cable is TAA compliant and constructed with high-quality, made-in-the-USA copper cabling. The cable features an aluminum foil shield and STP construction to counter EMI, RFI, and alien crosstalk, making it an ideal choice for 10GBase-T ports and equipment like network adapters, switches, routers, hubs, and patch panels. This Riser Rated (CMR) cable uses a PVC jacket and 26 AWG stranded copper conductors to support bandwidth-intensive applications. It helps reduce impedance and structural return loss (SRL) for voice, data, and video distribution. Each end features an RJ-45 Male connector with 50-micron gold-plated contacts to improve signal integrity. The snagless design protects the clips from damage, which is particularly beneficial in environments with high insertion cycles. This passive cable is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards and is rated for operating temperatures between -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438724 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43872 TAA compliant for government use?
Yes, this C2G43872 cable is TAA compliant and meets the requirements for use in United States government projects and facilities.
What type of shielding does this Cat6a cable use?
This is a Shielded STP (Screened Twisted Pair) cable using an aluminum foil shield designed to protect 10 Gigabit Ethernet connections from noise and EMI.
What is the maximum operating temperature for this cable?
The cable is rated for operating temperatures ranging from -4° - 167°F (-20° - 75°C).
Will this cable work for 10 Gigabit Ethernet applications?
Yes, it is designed for 10GBase-T ports and equipment, including switches and routers, and meets ANSI/TIA-568.2-D standards.
Does this cable have a warranty?
This C2G43872 network cable is backed by a lifetime warranty.
