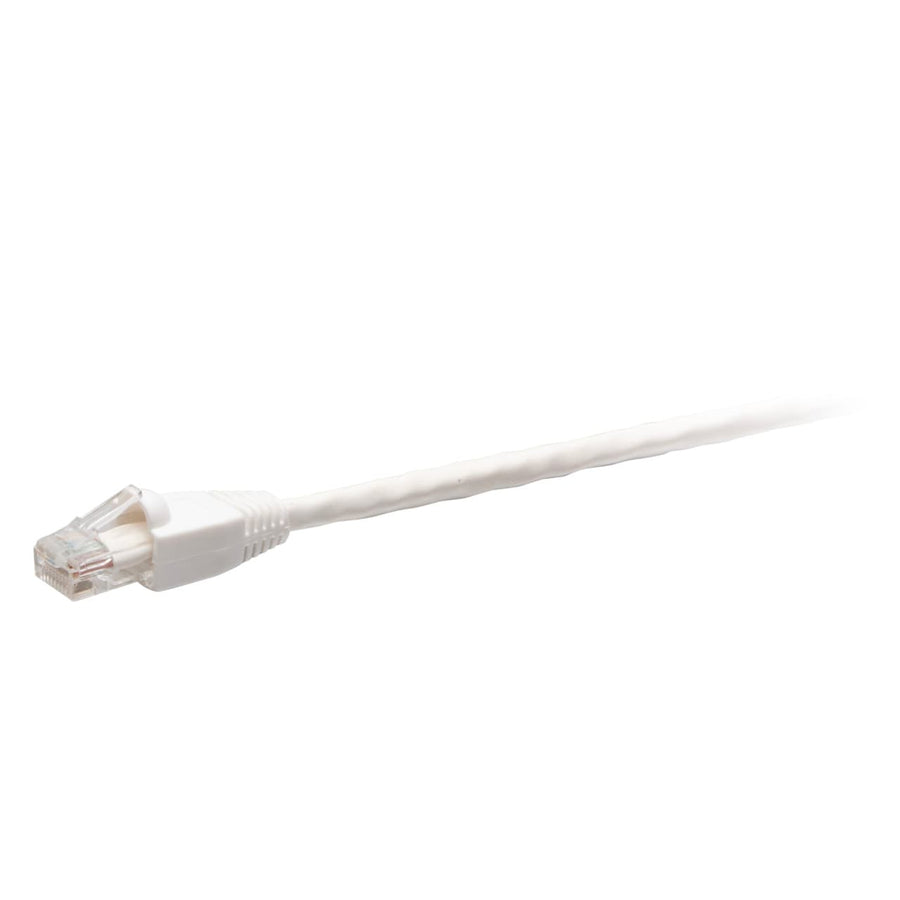

50ft (15.2m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
50ft TAA-compliant Cat6 snagless UTP network cable in white, featuring CMR-rated riser jacket and made in the USA copper conductors
The C2G43587 is a 50ft (15.2m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in white. Specifically designed for use in United States government projects and facilities, this cable meets stringent TAA requirements. It features high-quality, made in the USA copper conductors and a 600 MHz maximum frequency to provide enhanced performance for 1000BASE-T (1 Gigabit Ethernet) applications. The cable is constructed with stranded 24 AWG copper and utilizes a PVC jacket that is CMR (Riser) rated for vertical cable runs. Each RJ-45 male connector is protected by a molded snagless boot to prevent clip damage during high-frequency insertion and provides additional strain relief. For reliable signal integrity, the connectors are equipped with 50-micron gold-plated contacts. This passive cable is designed for connectivity between network adapters, hubs, switches, and routers, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 1.12 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435877 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43587 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and is rated for a 600 MHz maximum frequency.
Can I use this cable in a riser application?
Yes, this cable features a CMR (Riser) rated PVC jacket, which is suitable for vertical cable runs.
What type of connector does this cable use?
The C2G43587 features two RJ-45 male connectors with a snagless boot design to protect the clips from breaking.
What other network hardware is compatible with this cable?
It is designed for use with various network adapters, hubs, switches, and routers, and is compatible with items like the 24-Port Cat6 110-Type Patch Panel (CG37199).
