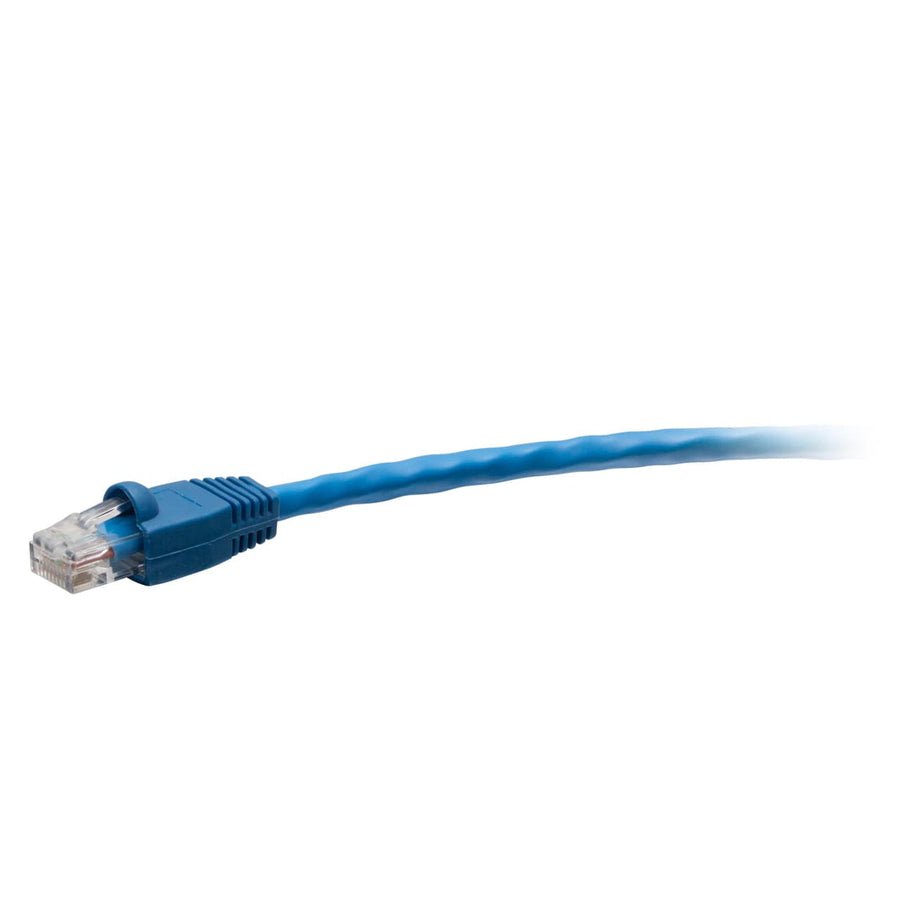

50ft (15.2m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
50ft TAA-compliant Cat5e snagless UTP network cable, blue, with 50-micron gold-plated contacts and made in the USA copper
The C2G43422 is a 50ft (15.2 m) TAA-compliant Cat5e snagless unshielded (UTP) network cable in blue, specifically designed for use in United States government projects and facilities. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting a variety of applications including 1000BASE-T (1 Gigabit Ethernet) with an enhanced 350 MHz maximum frequency. Constructed with high-quality, made in the USA stranded copper cabling, this cable provides consistent and reliable performance for network adapters, hubs, switches, routers, and servers. The molded snagless boot protects the RJ-45 clips from snapping during installation and high-cycle use, while the 50-micron gold-plated contacts ensure optimal signal integrity. This CMR rated riser cable features a 0.24 in (6 mm) diameter and works within an operating temperature range of -4° - 167°F (-20° - 75°C). The jacket is made of PVC and utilizes a T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.02 lbs (0.5 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434221 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
