50ft (15.2m) Select VGA Video Cable M/M - In-Wall CMG-Rated
In-wall rated VGA cable, 50ft length, supports up to QXGA (2048x1536) resolution with low-profile connectors

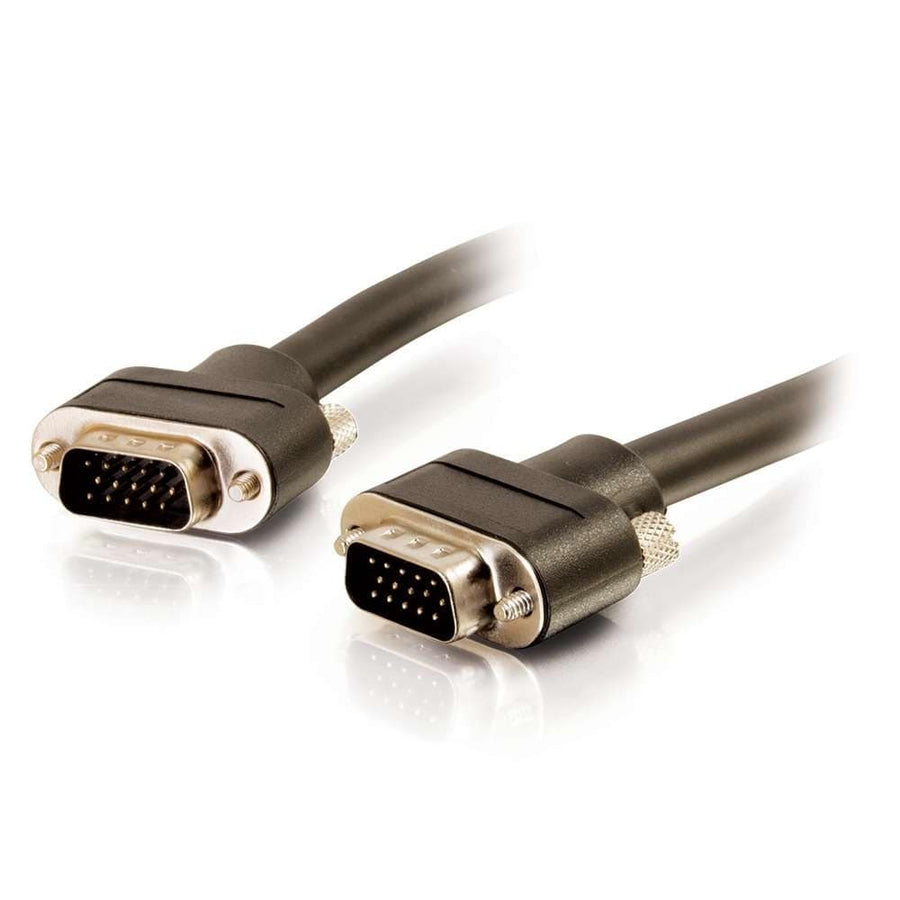

The C2G CG50218 is a 50ft (15.2 m) VGA male to male video cable designed for source to display connectivity in residential or commercial environments. This cable is specifically rated for in-wall installation, featuring a PVC jacket with CMG and FT4 ratings to meet safety requirements for concealed cabling. It supports video resolutions up to QXGA (2048x1536), making it suitable for high-resolution desktop or digital signage applications. To ensure optimal signal integrity, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, allowing the source to communicate the display's specific capabilities to the signal generator. The cable features a 0.33 in (8.5 mm) diameter and low-profile, rounded connectors, which simplify installation in restricted spaces such as projector mount poles or tight wall plates.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.33 in (8.5 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shipping Weight | 4.05 lbs (1.8 kg) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Cable Type | VGA |
| Color | Black |
All other specifications 12
| Connector 1 | (1) VGA Male(1) VGA Male |
| Connector 2 | (1) VGA Male(1) VGA Male |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| UPC | 757120502180 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | QXGA (2048x1536) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G CG50218 rated for in-wall installation?
Yes, this cable features a PVC jacket with CMG and FT4 ratings specifically for in-wall applications.
What is the maximum resolution supported by this VGA cable?
The CG50218 supports video resolutions up to QXGA (2048x1536).
Will this cable work with EDID communication?
Yes, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals.
Can this cable be used in tight spaces like projector mounts?
Yes, the low-profile, rounded connectors are designed to facilitate installation in restricted spaces like projector mount poles.
What is the bend radius for the CG50218?
This cable has a minimum bend radius of 2.01 in (51 mm).
