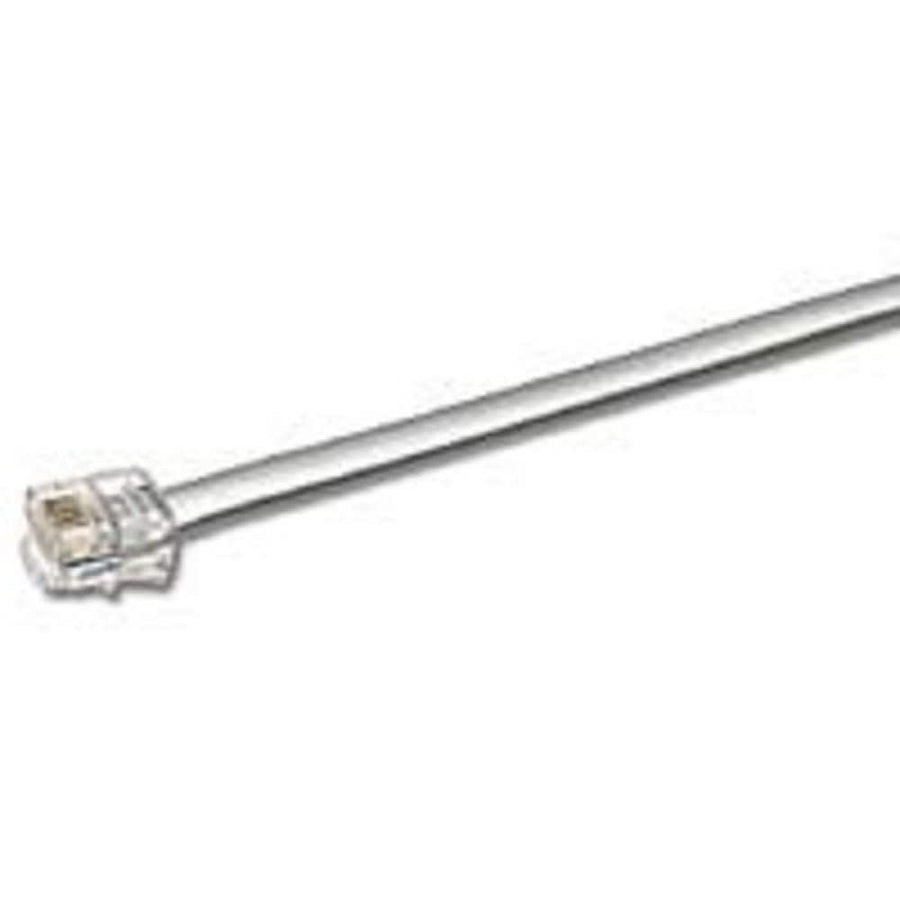

50ft (15.2m) RJ12 6P6C Straight Modular Cable
50 ft RJ12 6P6C straight modular cable with 28 AWG silver satin wire for voice and data applications
The C2G CG08115 is a 50 ft (15.2 m) RJ12 6P6C straight modular cable designed for voice and data applications where high data rates are not required. This cable features 28 AWG silver satin wire construction to provide a cost-effective solution for standard connectivity needs. It is built with a PVC jacket and is rated for standard, non-rated environments. The cable is designed for reliable performance across a wide temperature range, with an operating temperature spanning -4°F to 176°F (-20°C to 80°C). This specific SKU is part of a series that offers different length options, including 14 ft and 25 ft versions, depending on the specific requirements of your installation. This 50 ft white cable is finished with two RJ-12 male connectors for straight-through modular connectivity.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.74 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Cable Type | Modem |
| Color | White |
All other specifications 9
| Connector 1 | (1) RJ-12 Male(1) RJ-12 Male |
| Connector 2 | (1) RJ-12 Male(1) RJ-12 Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120081159 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the maximum length for this RJ12 cable series?
This specific CG08115 SKU is 50 ft (15.2 m) long, though the series also includes 14 ft and 25 ft options.
What wire gauge is used in the CG08115?
The CG08115 uses 28 AWG silver satin wire for its construction.
Is this cable suitable for high-speed data environments?
This cable is intended for voice and data applications that do not require high data rates.
What are the environmental operating limits for this cable?
The cable is rated to operate in temperatures between -4°F (-20°C) and 176°F (80°C).
Does this cable come with a warranty?
Yes, this C2G cable is backed by a lifetime warranty.
