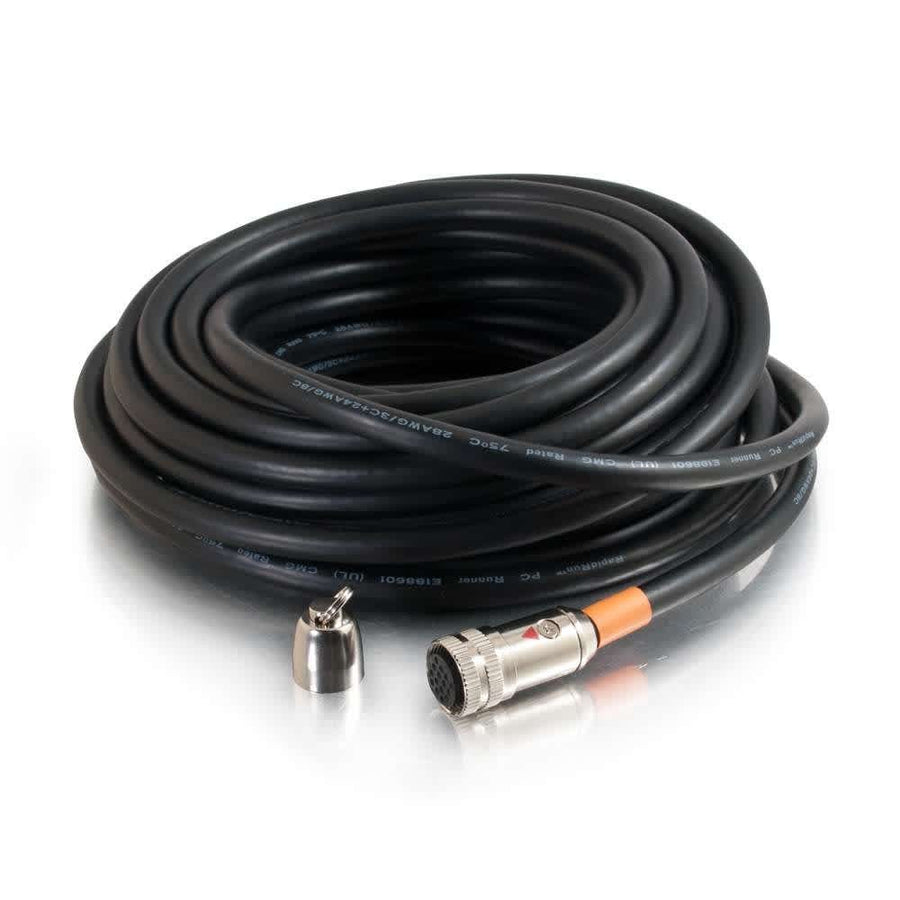

50ft (15.2m) RapidRun® Multi-Format Runner Cable - In-Wall CMG-Rated
50 ft (15.2 m) RapidRun multi-format runner cable with CMG-rated jacket for in-wall AV installations
The CG60005 is a 50 ft (15.2 m) RapidRun Multi-Format Runner Cable designed to standardize in-wall audio/video installations. This CMG-rated cable uses a 9.0 mm diameter jacket and features 15-pin female RapidRun connectors at both ends. It is intended for use in educational and institutional environments where high-quality connections are required without the need for field terminations. This runner cable facilitates the transmission of VGA video along with other audio/video signals, including 3.5mm stereo audio, USB, and RCA composite audio/video. To complete a RapidRun Multi-Format solution, this runner requires either two break-away flying leads, two wall plates, or one break-away flying lead and one wall plate to terminate each end.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 50 ft (15.2 m) |
| Shipping Weight | 4.08 lbs (1.9 kg) |
| Cable Type | RapidRun |
| Connector 1 | (1) RapidRun 15-pin Female(1) RapidRun 15-pin Female |
| Connector 2 | (1) RapidRun 15-pin Female(1) RapidRun 15-pin Female |
| TAA Compliant | No |
| UPC | 757120600053 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
| Cable Diameter | 9.0 mm |
| Color | Black |
Resources
Questions about this part
What do I need to buy to complete this installation?
Each runner requires termination at both ends. You must purchase either two break-away flying leads, two wall plates, or one break-away flying lead and one wall plate to finish the connection.
What types of signals can this runner cable carry?
This cable supports VGA video, 3.5mm stereo audio, USB, and RCA composite audio/video signals through a single runner.
Is this cable suitable for in-wall use?
Yes, the CG60005 features a CMG-rated jacket specifically designed for in-wall audio/video installations.
What is the connector type for the CG60005?
The cable is equipped with 15-pin female RapidRun connectors on both ends to ensure efficient, high-quality connections.
Can I use this with existing keystone inserts?
Yes, the RapidRun wall plates are compatible with most brands of keystone inserts, including Leviton, L-com, NetKey, ADC Krone, HellermannTyton, and Allen Tel.
