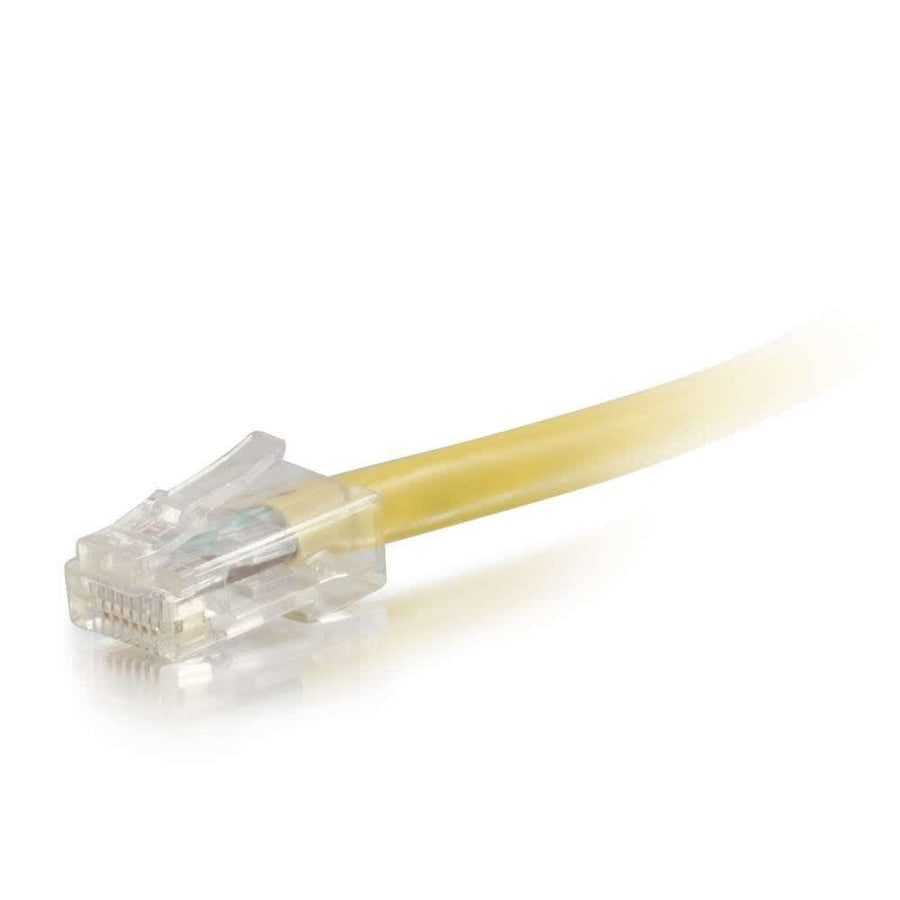

50ft (15.2m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
50ft Yellow Cat6 Unshielded UTP Ethernet patch cable with stranded copper conductors and RJ-45 male connectors
The C2G CG04186 is a 50ft (15.2m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution applications. This cable is built for fast Ethernet and Gigabit computer networks that require reliable performance. It features stranded copper conductors and a 24 AWG wire gauge, which helps minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the 50ft length, up to the termination point. This construction helps drastically reduce both impedance and structural return loss (SRL). The cable uses a T568B wiring scheme and is housed in a yellow PVC jacket with a 0.24 in (6 mm) diameter. With RJ-45 male connectors on both ends and a non-booted design, this cable provides a streamlined connection for network infrastructure. The product is rated for temperatures up to 75°C and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.3 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041863 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the length and color of this patch cable?
The CG04186 is a 50 ft (15.2 m) cable in a yellow finish for easy network color-coding.
Is this Cat6 cable shielded or unshielded?
This is an Unshielded (UTP) Cat6 cable, which is designed to reduce impedance and structural return loss (SRL).
What kind of conductors are used in the CG04186?
It is constructed from high-quality stranded copper conductors with a 24 AWG wire gauge.
What is the wiring standard for this cable?
This patch cable follows the T568B wiring scheme and features RJ-45 male connectors on both ends.
