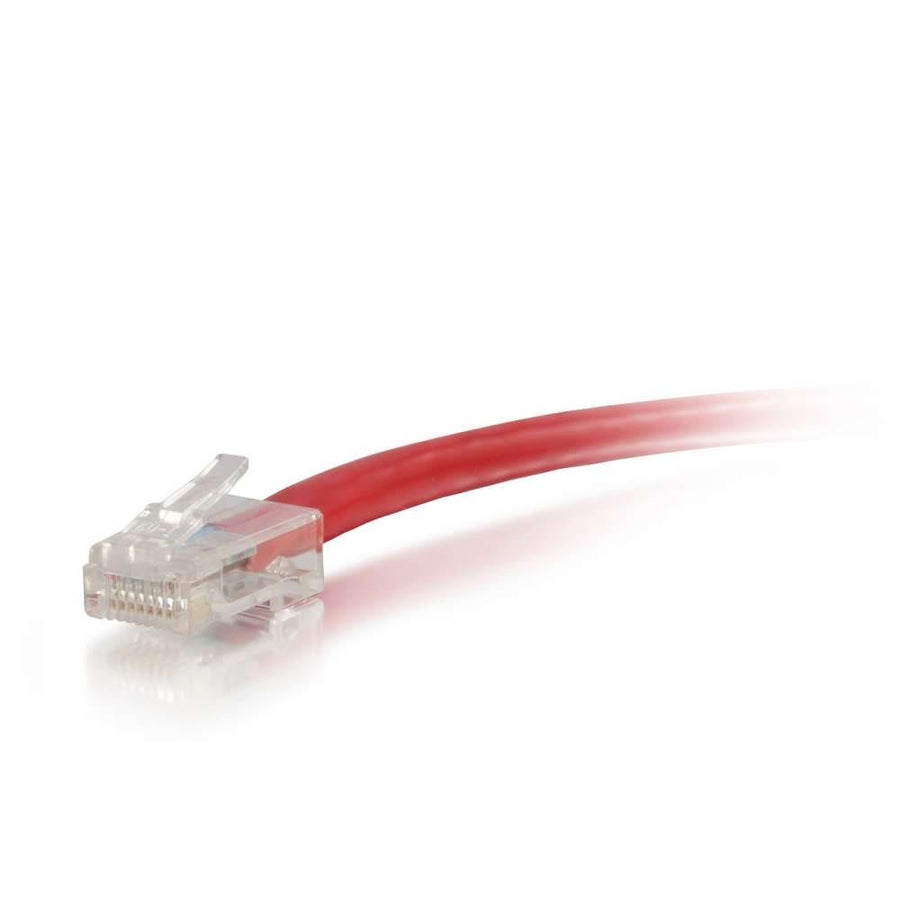

50ft (15.2m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Red
50ft Red Cat6 Unshielded UTP patch cable with RJ-45 male connectors and stranded copper conductors
The C2G CG04165 is a 50ft (15.2m) Red Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications including voice, data, and video distribution. This cable is engineered to meet all Cat6 TIA/EIA standards, which helps to drastically reduce structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain consistent twist-spacing throughout the entire 50ft length right up to the termination point. This construction, using high-quality 24 AWG stranded copper conductors, is specifically designed to minimize Near-End Crosstalk (NEXT) levels. The cable features a 0.24 in (6 mm) diameter with a PVC jacket and uses a T568B wiring scheme. The RJ-45 male connectors are non-booted, making this an ideal solution for color-coded network installations where organized cable management is a priority. This cable is rated for temperatures up to 75°C and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.28 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041658 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the C2G CG04165?
This patch cable follows the T568B wiring scheme for standard Ethernet connectivity.
Is the C2G CG04165 TAA compliant?
No, the CG04165 is not TAA compliant.
What type of conductor is used in this Cat6 cable?
The CG04165 uses stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
What is the maximum temperature rating for this cable?
This cable is rated for operation in temperatures up to 75°C.
Does this cable include boots on the RJ-45 connectors?
No, this is a non-booted connector type, which allows for a more streamlined profile.
