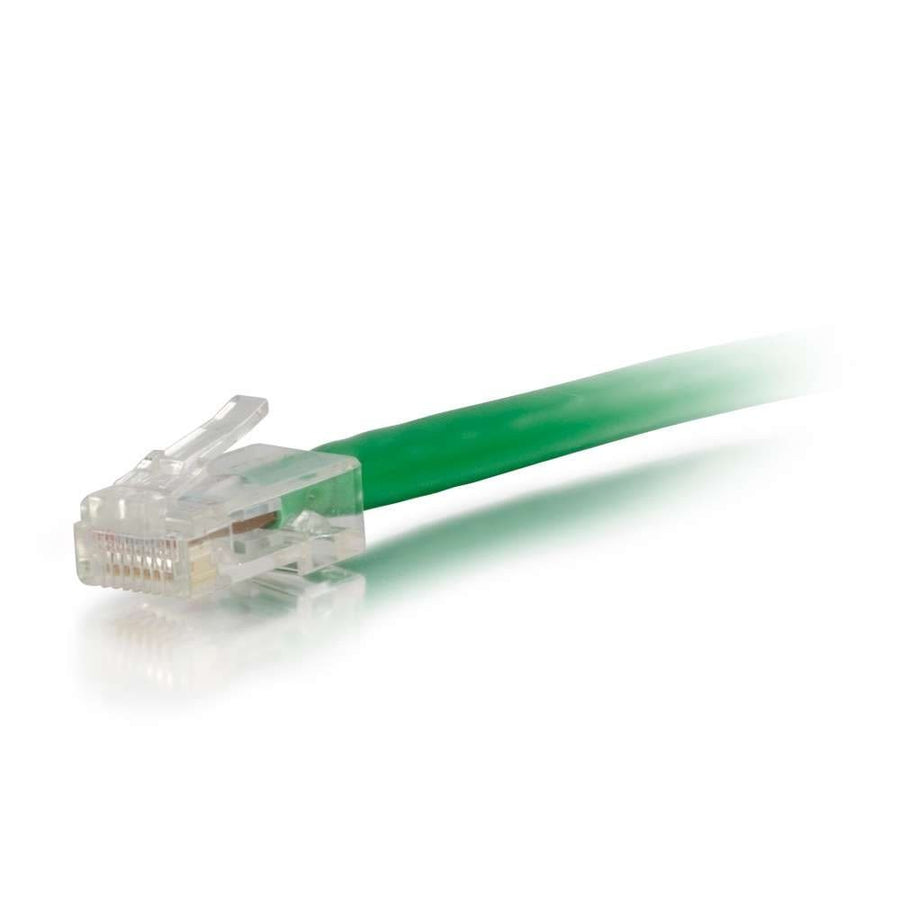

50ft (15.2m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Green
50ft green Cat6 UTP patch cable with RJ-45 male connectors and T568B wiring for high-speed data and video distribution
The C2G CG04144 is a 50ft (15.2m) green Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards, significantly reducing impedance and structural return loss (SRL). The construction utilizes high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. This cable features a 0.24 in (6 mm) diameter and is built with a PVC jacket rated for standard/non-rated environments. Designed with a T568B wiring scheme and non-booted RJ-45 male connectors, this green cable allows for easy color-coding within complex network installations. This product is covered by a lifetime warranty and is compliant with RoHS, REACH, and NDAA 889 requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.34 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041443 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the C2G CG04144?
This patch cable uses the T568B wiring scheme on both RJ-45 male connectors.
Is the C2G CG04144 TAA compliant?
No, this specific SKU is not TAA compliant, though it does meet NDAA 889 requirements.
What material is used for the conductors in this cable?
The cable is constructed with high-quality stranded copper conductors.
What is the temperature rating for this green Cat6 cable?
This cable is rated for operating temperatures up to 75°C.
Does this cable support PoE and high-bandwidth video?
Yes, it is designed for bandwidth-intensive voice, data, and video distribution in Gigabit networks.
