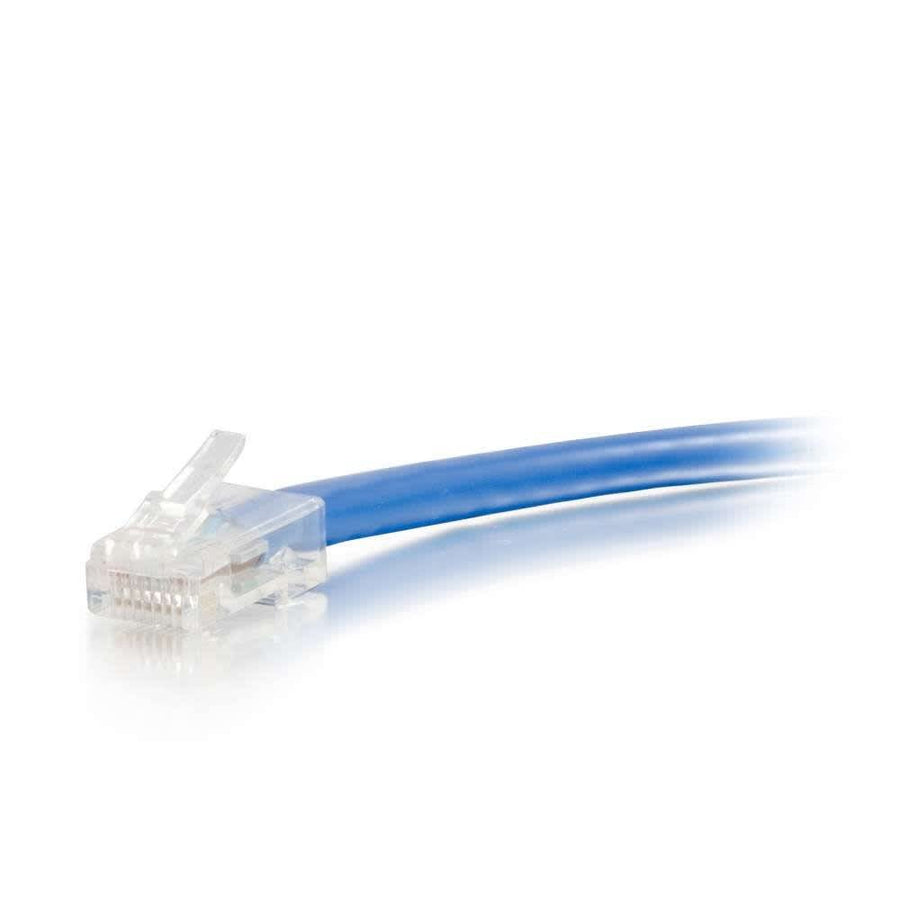

50ft (15.2m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
50ft Cat6 unshielded UTP patch cable in blue with stranded copper conductors and T568B wiring
The C2G CG04102 is a 50ft (15.2m) Cat6 non-booted patch cable designed for high-bandwidth applications including voice, data, and video distribution in Gigabit Ethernet and fast Ethernet networks. This unshielded UTP cable utilizes high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded to maintain consistent twist-spacing from the termination point to the end of the line, which helps reduce impedance and structural return loss (SRL). This cable features a 0.24 in (6 mm) diameter and is built with a PVC jacket rated for standard/non-rated environments. The wiring follows the T568B scheme and is rated for temperatures up to 75°C. This blue cable is an ideal solution for color-coding network segments in professional installations. The product carries CE, REACH, and RoHS certifications and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.29 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041023 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the C2G CG04102?
This patch cable follows the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is the C2G CG04102 suitable for high-bandwidth video distribution?
Yes, this Cat6 cable is designed for Gigabit networks requiring bandwidth-intensive voice, data, or video distribution.
What is the maximum operating temperature for this cable?
The cable is rated for operation in temperatures up to 75°C.
Does this Cat6 cable have a protective boot?
No, this is a non-booted connector type, which provides a lower profile for the termination.
What certifications does the CG04102 carry?
The cable is compliant with CE, REACH, and RoHS standards.
