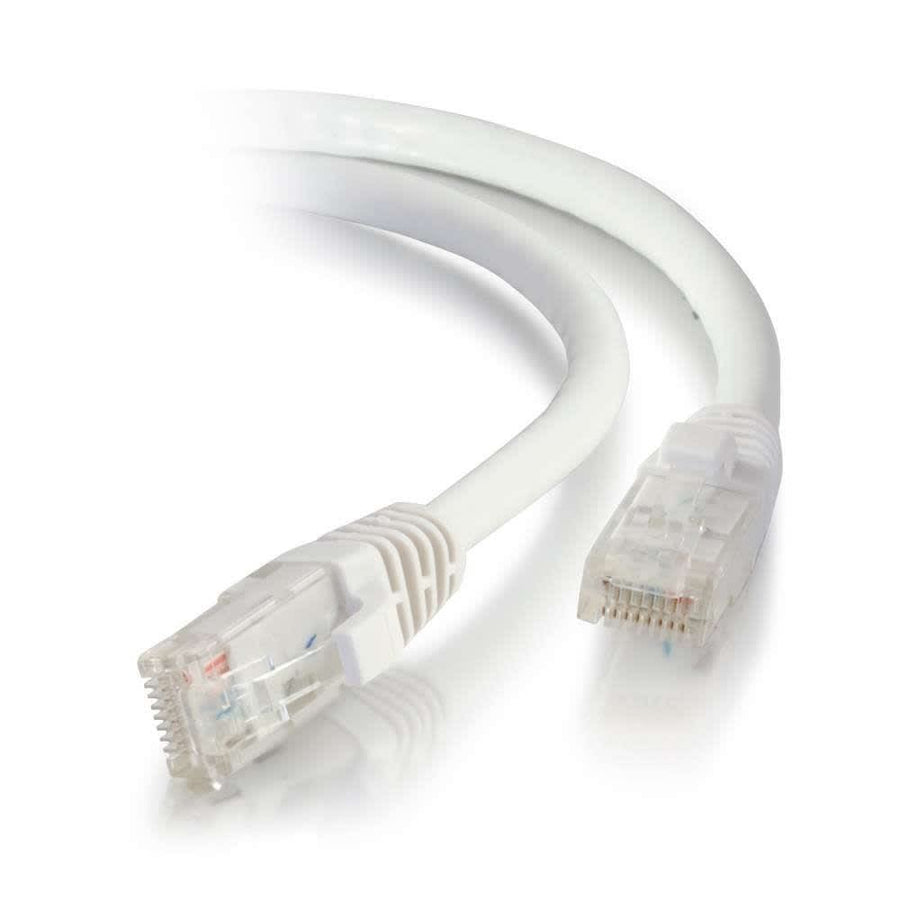

50ft (15.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - White
50ft Cat5e Unshielded UTP patch cable in white with snagless boots and stranded copper conductors
The C2G CG24046 is a 50ft (15.2 m) Cat5e Unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This white patch cable features stranded copper conductors and a 24 AWG wire gauge to ensure reliable performance in fast Ethernet networks. Each pair is bonded together to maintain twist-spacing through the termination point, which helps reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. The cable utilizes a T568B wiring scheme and is housed in a PVC jacket with a diameter of 0.21 in (5.3 mm). For easier installation, the RJ-45 male connectors include molded snagless boots made of PVC, which protect the clips from damage during repeated plugging and unplugging. This series offers a high dielectric strength of 500 MV/m and is compliant with NDAA 889, RoHS, and REACH standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.11 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120240464 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the length and wiring configuration of the CG24046?
The CG24046 is a 50 ft (15.2 m) cable using the T568B wiring scheme.
Is this patch cable suitable for high-bandwidth video distribution?
Yes, it is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution.
How does the snagless design benefit installation?
The molded snagless boot protects the RJ-45 clips from being snapped off during plugging and unplugging.
What is the conductor material used in this cable?
This cable uses high-quality stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
Does this cable meet regulatory compliance standards?
Yes, this product is compliant with NDAA 889, REACH, and RoHS standards.
