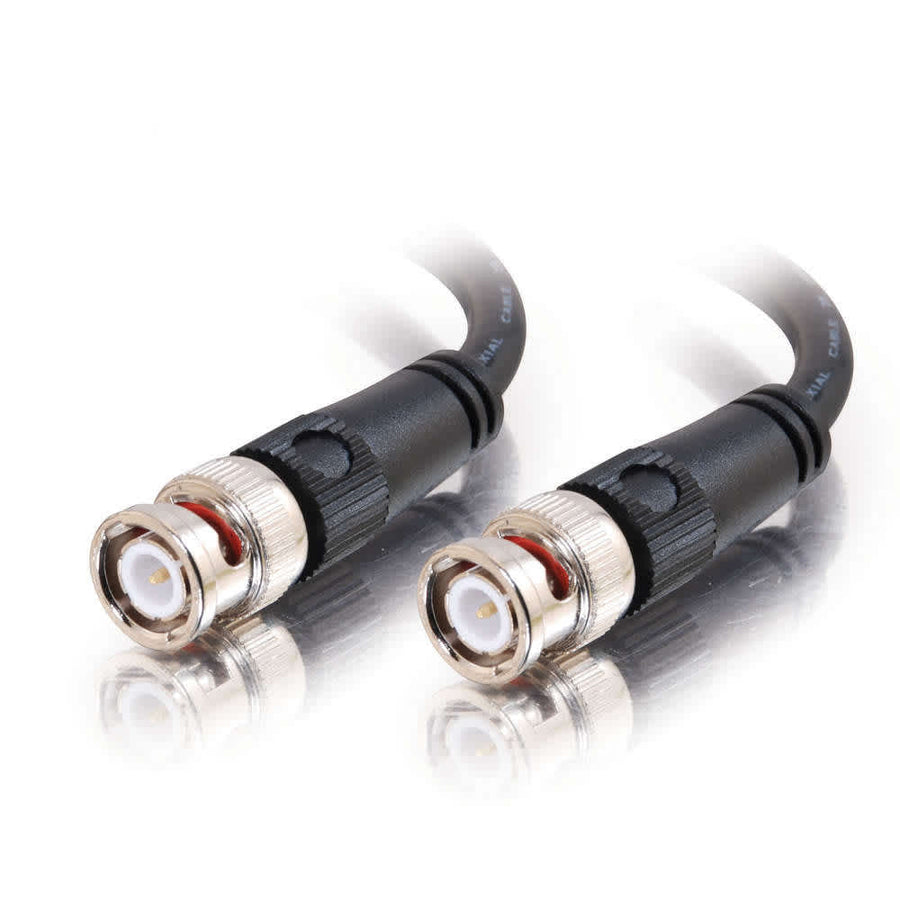

50ft (15.2m) 75 Ohm BNC Cable
50ft (15.2m) 75 Ohm RG59/U coaxial BNC cable with dual shielding and nickel-plated connectors
The C2G CG40030 is a 50 ft (15.2 m) 75 Ohm BNC cable designed for professional video applications, including broadcast environments, studio setups, CCTV, boardroom presentations, and home theater installations. This cable is constructed as RG59/U dual shield coaxial cable, featuring a 60% copper braid over foil to minimize interference. The internal structure utilizes a 22 AWG copper-covered steel center conductor to ensure reliable signal transmission. The ends are finished with bright nickel-plated BNC male connectors that include molded PVC strain relief, protecting the connection points from mechanical wear and tension over time. This cable is suitable for bidirectional signal transmission and features a 0.24 in (6 mm) diameter. It is a part of the 75 Ohm BNC Cable Series, which is available in other lengths including 3 ft, 6 ft, 12 ft, 25 ft, and 75 ft to accommodate various installation requirements.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shipping Weight | 1.12 lbs (0.5 kg) |
| Signal Transmission | Bidirectional |
| Wire Gauge | 22 |
| Cable Type | Video |
| Color | Black |
| Connector 1 | (1) BNC Male |
All other specifications 8
| Connector 2 | (1) BNC Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120400301 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the signal type for the CG40030 BNC cable?
The CG40030 is designed for bidirectional signal transmission in video applications like CCTV and broadcast.
Is this cable suitable for professional studio or broadcast use?
Yes, the CG40030 is a high-quality RG59/U dual shield coaxial cable designed for broadcast, studio, and boardroom presentations.
What are the connector types on the CG40030?
This cable features two nickel-plated BNC male connectors with molded PVC strain relief for durability.
Does the CG40030 come in other lengths?
Yes, this series includes several other length options such as 3 ft, 6 ft, 12 ft, 25 ft, and 75 ft.
What is the shield construction of this BNC cable?
The CG40030 uses an RG59/U dual shield design, consisting of 60% copper braid over a foil layer.
