500ft (152.4m) 16/2 Speaker Wire - In-Wall CL2-Rated
500ft bulk 16 AWG speaker wire, CL2 and FT4 rated for in-wall audio installations, featuring a white PVC jacket

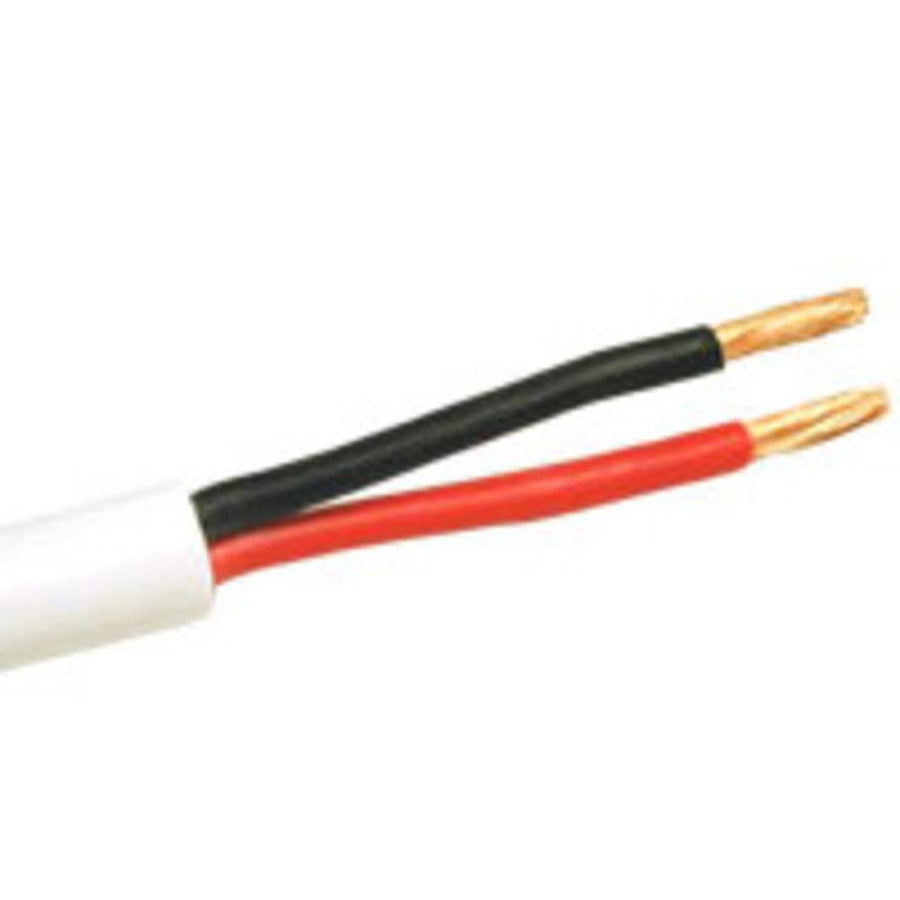

The CG43084 is a 500 ft (152.4 m) bulk spool of 16 AWG speaker wire intended for residential and commercial audio installations. This 16/2 cable features an in-wall rated white PVC jacket that is both CL2 and FT4 rated to help limit the spread of fire between floors. The conductor construction consists of 65 strands of 99.9% high-purity copper, with each inner conductor measuring 65/0.16 +/- 0.004mm BC and an inner diameter of 1.49mm. To simplify installation, the conductors are twisted together to create a round profile that is easier to pull through conduit or wall cavities compared to flat zip-cord. The cable features color-coded red and black cores for easy identification during termination. The total diameter of the cable is 2.10 +/- 0.10mm with a 0.31mm SR-PVC insulation.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Cable Length | 500 ft (152.4 m) |
| Shipping Weight | 24.82 lbs (11.3 kg) |
| Cable Type | AudioBulk |
| Color | White |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CL2 RatedFT4 Rated |
| Product Type | Speaker Wire |
| TAA Compliant | No |
| UPC | 757120430841 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99

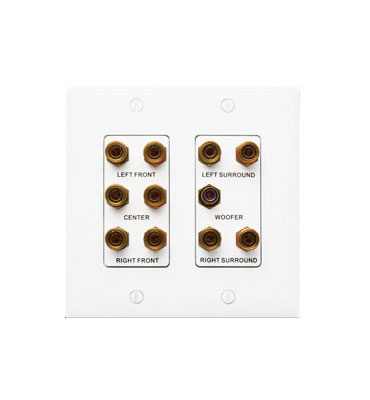

5.1 Home Theater Outlet Strap with Wall Plate in White
F9008WHV1$49.99
Banana Jacks Gold 5 Pair
364827V5$34.99
8-pin Mini Din Male Connector - Black
CG01755Discontinued
Questions about this part
Is the CG43084 rated for in-wall use?
Yes, this 16/2 speaker wire is CL2 and FT4 rated, making it suitable for in-wall installation applications.
What is the conductor construction for CG43084?
This cable uses 65 strands of 99.9% high-purity copper (65/0.16 +/- 0.004mm BC) per conductor.
What is the difference between the 250 ft and 500 ft versions?
The CG43084 is the 500 ft (152.4 m) version of this 16/2 speaker wire series; a 250 ft version is also available.
What materials are used in the jacket and insulation?
The cable features a white PVC jacket with 0.31mm SR-PVC insulation.
What accessories are compatible with this speaker wire?
Compatible items include CG43037 cable ties, CG29854 hook-and-loop wraps, and CG43053 self-adhesive cable clamps.
