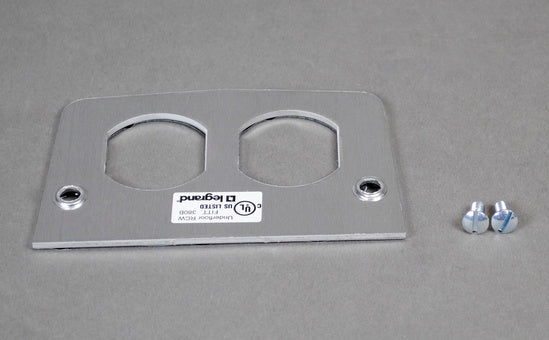

500DR Duplex Faceplate
Duplex faceplate for 525 Series in-floor systems, providing 27 cubic inches of capacity
The Wiremold 500DR Duplex Faceplate is a component of the 525 Series In-Floor Systems designed to house electrical components within floor-based raceway installations. This service fitting is engineered to accept duplex receptacles and provides 27 cubic inches (442ml) of internal capacity for wiring and device access. As a part of a four-piece service fitting assembly, this plate works in conjunction with a housing and base plate to complete the in-floor outlet. This product meets all RoHS material restrictions and is cULus listed for professional installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 5" x 5" x 3.75" (127 x 127 x 95.3 mm) |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What does the 500DR faceplate fit?
This faceplate is a component of the 525 Series In-Floor Systems and is used to house duplex receptacles.
What is the capacity of this service fitting?
The 525 Series service fittings, including the 500DR, provide 27 cubic inches (442ml) of internal capacity.
Does this include the receptacles?
No, this SKU is the faceplate; receptacles are only included when specifically indicated in the part number description.
What other parts are needed for a complete installation?
A complete four-piece service fitting assembly requires the housing and the base plate in addition to the faceplate.
