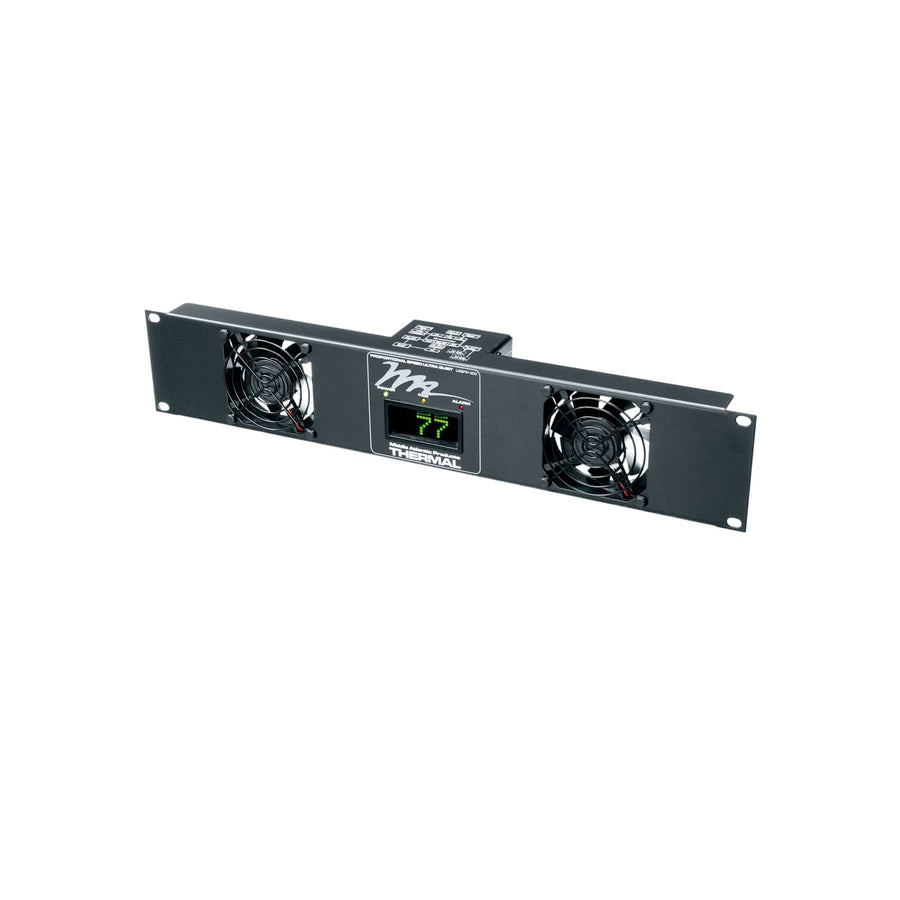

50 CFM Fan Panel with Display, 24dB, 220 - 240VAC
2RU Ultra Quiet Fan Panel with 50 CFM capacity, digital temperature display, and proportional DC fan control
The Middle Atlantic IUQFP-2D is a 2RU active thermal management solution designed for environments where noise must be minimized, such as classrooms, boardrooms, or houses of worship. This fan panel provides 50 CFM of cooling capacity while maintaining a quiet acoustic profile of 24 dB. It utilizes an onboard digital processor to manage thermostatic, proportional speed DC fan control, varying the speed based on the temperature of the enclosure. The unit features a brushed and anodized finish and includes an integrated digital display on the front panel to provide real-time rack temperature and system status. For critical installations, the system offers both local and remote notification capabilities for over-temperature events and fan failures, allowing these alerts to be sent to an external alarm or a central control system. This specific 220-240VAC model is available for international use. Note that this product is scheduled for discontinuation on October 1, 2026, and the manufacturer suggests the IUQFP-4D as a replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 50 |
| Depth | 3.4 in (8.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 9
| Available Internationally | Yes |
| Component Type | Active |
| Display | Yes |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| Thermistor | No |
| UPC | 656747095795 |
Resources
Questions about this part
Will this fan panel work in a standard 19-inch rack?
Yes, the IUQFP-2D occupies 2RU of vertical space and features a 19 in (48.3 cm) width to fit standard rack mounting points.
How does this unit notify me if the cooling fails?
The system provides local status updates via the front panel display and can send remote signals for fan faults or over-temperature to an external alarm or control system.
What is the difference between the IUQFP-2D and the IUQFP-4D?
The IUQFP-2D is a 2RU model, while the IUQFP-4D is the suggested alternative for projects requiring a different rack space configuration.
Can I monitor the temperature remotely?
Yes, the onboard digital processor monitors the rack temperature via an external sensor and allows for remote notification of status changes.
Is this fan panel suitable for international installations?
Yes, this model is designed for international use and operates on a 220-240VAC input voltage.
