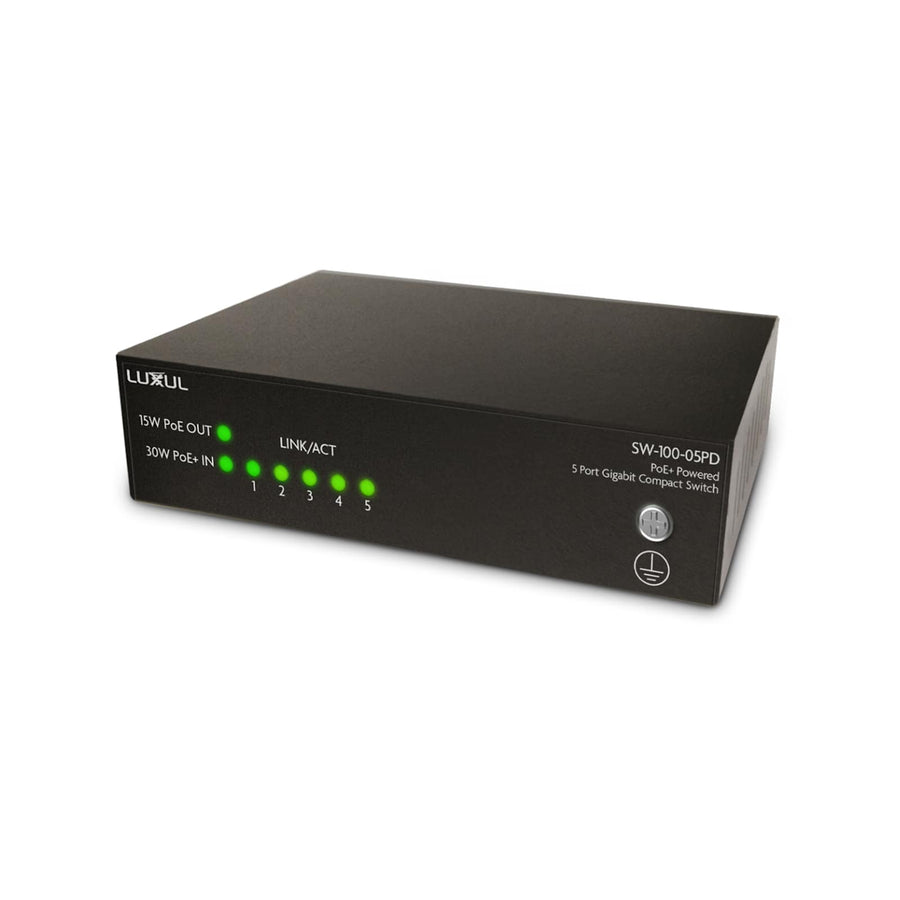

5 Port Unmanaged PoE+ Switch With POE Passthrough
5-port PoE+ unmanaged switch featuring PoE passthrough for 802.3af devices and versatile mounting options
The Luxul SW-100-05PD is a compact 5-port unmanaged PoE+ powered switch designed to extend network access in locations where power outlets are unavailable. This switch is powered via a PoE+ uplink, utilizing a 30W PoE+ input to drive its internal operations. It features one dedicated uplink port for power input, leaving four available ports for network connectivity. One of these four ports provides PoE output (limited to a 15W maximum on port 4) to support a single PoE 802.3af device, such as a camera, AV over IP receiver, or control system interface. Constructed in a durable metal enclosure, the SW-100-05PD is built for various installation environments. It includes detachable wing brackets for wall mounting, keyholes for standard mounting, and attachable magnet feet for securing the unit to metal surfaces or a desktop. Because it is fanless, it operates completely silently, making it suitable for noise-sensitive areas. This plug-and-play device simplifies deployment by providing immediate Gigabit Ethernet connectivity without requiring complex configuration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 1 in (2.5 cm) |
| Max Power Consumption | 30 W |
| PoE Power Budget | 15 W |
| Product Weight | 0.5 lbs (0.2 kg) |
| Shipping Dimensions | 8.9" x 6.2" x 2.6" (226.1 x 157.5 x 66.1 mm) |
| Shipping Weight | 1.6 lbs (0.7 kg) |
| Switching Capacity | 10 GBPS |
| Width | 3.9 in (9.9 cm) |
All other specifications 7
| Connection Type | Wired |
| Port Location | Rear |
| Power Cord | US Cord |
| Switch Type | PoEUnmanaged |
| TAA Compliant | No |
| UPC | 655003921328 |
| Certifications | CB ReportCECE-EMCCE-LVDFCCICNDAA 889RCMRoHSUKCA |
Resources
Questions about this part
How is the SW-100-05PD powered?
The switch is powered through its dedicated uplink port via a 30W PoE+ input, eliminating the need for a local AC outlet.
Can I power a camera through this switch?
Yes, port 4 provides a PoE output with a 15W maximum power budget to support a single 802.3af-compliant device like a camera.
What mounting options are available for the SW-100-05PD?
The unit includes detachable wing brackets for wall mounting, keyholes, and magnetic feet for installation on metal surfaces.
Does the SW-100-05PD require configuration?
No, this is an unmanaged, plug-and-play switch that provides immediate Gigabit Ethernet connectivity upon connection.
How many total ports are available for network devices?
After using one port for the PoE+ power uplink, you have four remaining ports available for network connectivity.
